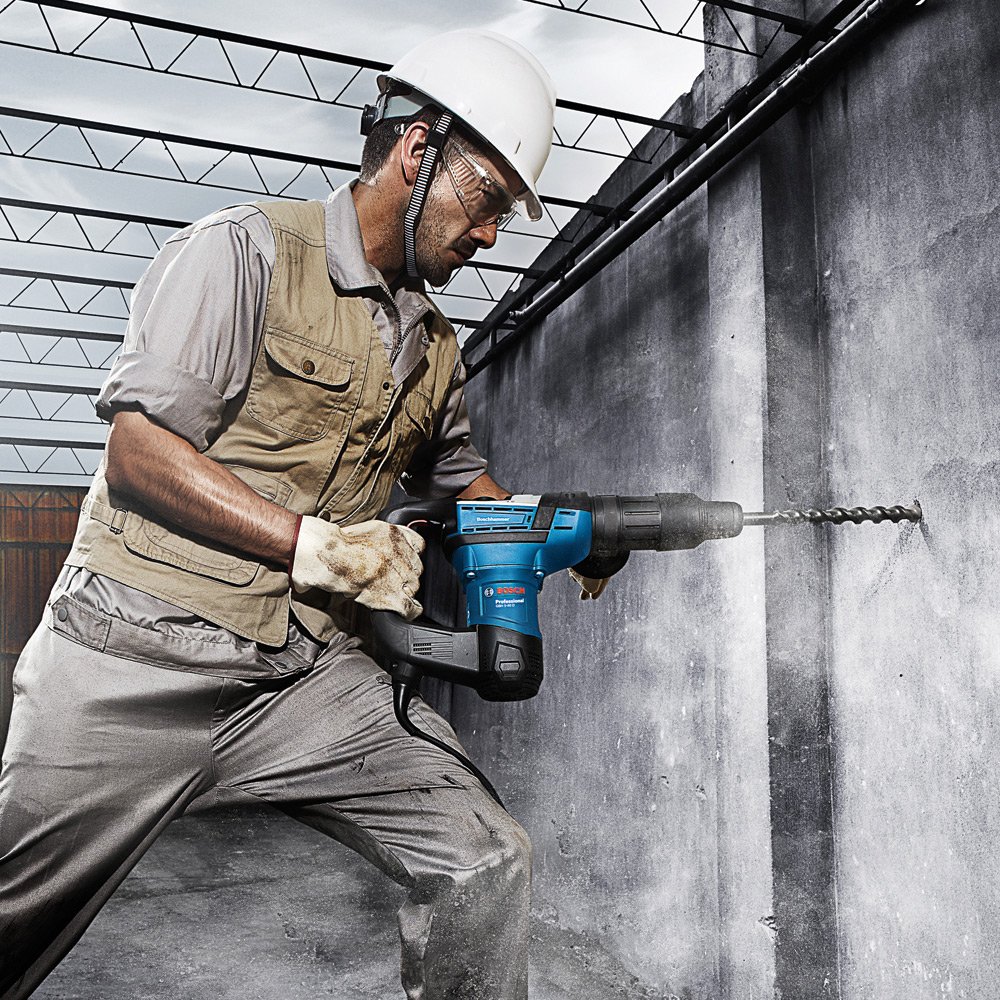

Bosch GBH 5-40 D SDS Max Hammer
The Bosch GBH 5-40 D is a high-performance 1100W power tool engineered for heavy-duty drilling and chiseling in masonry. This unit utilizes an SDS Max tool holder for secure bit retention during high-impact operations. It provides a versatile solution for structural contractors and MEP specialists requiring consistent performance in concrete.
Built for the Job
This rotary hammer serves as a primary tool for structural renovations and heavy site preparation. It handles large-diameter holes for pipe pass-throughs and electrical cable runs through reinforced walls. The robust metal housing ensures the internal components remain protected during demanding demolition tasks or continuous overhead drilling. Site supervisors often specify this model for its balance of weight and impact force, allowing for extended use without excessive operator fatigue.
-
Drilling through-holes for HVAC ducting in concrete walls.
-
Chiseling channels for electrical conduit in industrial brickwork.
-
Removing floor tiles and mortar beds during commercial site demolition.
Product Highlights
- High Impact Energy
-
The internal hammer mechanism delivers 8.5 Joules of energy to maintain high drilling speeds in hard materials.
- Vario-Lock System
-
- Offers 12 different chisel positions for ergonomic handling.
- Allows the operator to adjust the angle to suit the specific work surface.
Technical Specifications
| Specification | Detail |
|---|---|
| Rated Input Power | 1,100 W |
| Impact Energy | 8.5 J |
| Tool Holder | SDS Max |
| Max Drilling Dia. Concrete | 40 mm |
| Max Drilling Dia. Core Cutters | 90 mm |
| Weight | 6.8 kg |
What’s Included
-
1 x GBH 5-40 D Professional Rotary Hammer
-
1 x Auxiliary handle
-
1 x Carrying case
-
1 x Grease tube
On-Site & Workshop Notes
-
Ensure the SDS Max shank is lightly greased before insertion to prevent premature wear of the tool holder.
-
The built-in setting wheel allows for variable speed control to match the bit diameter and material hardness.
-
Monitor the service display which indicates when carbon brush replacement is necessary to prevent motor damage.
-
Store this machinery in its provided case to protect the selector switch from dust ingress during transport.
