Standard 110mm 4-Way Floor Trap with Tile-In Grill and Waste Filter

110mm 4-Way Floor Trap

The 110mm 4-Way Floor Trap provides a high-capacity drainage solution for modern wet rooms, bathrooms, and commercial kitchens. This uPVC fitting manages greywater discharge from multiple sources while maintaining a secure gas seal. It features a versatile top housing that accepts either a standard stainless steel finish or a recessed tile-in insert for a seamless floor appearance.

Built for the Job

This drainage component is essential for multi-fixture plumbing layouts where space below the floor slab is limited. By consolidating waste lines from showers, washbasins, and floor washes into a single 110mm discharge pipe, it reduces the number of penetrations required in the structural floor. The unit is designed to be cast directly into concrete screeds, with a wide flange that assists in creating a watertight bond with liquid-applied or sheet waterproofing membranes.

• Centralized drainage for residential bathrooms and commercial washrooms.

• Integration into tiled floor systems requiring a hidden drain look.

• High-flow greywater management in utility rooms and laundry areas.

Product Highlights

Multi-Inlet Configuration

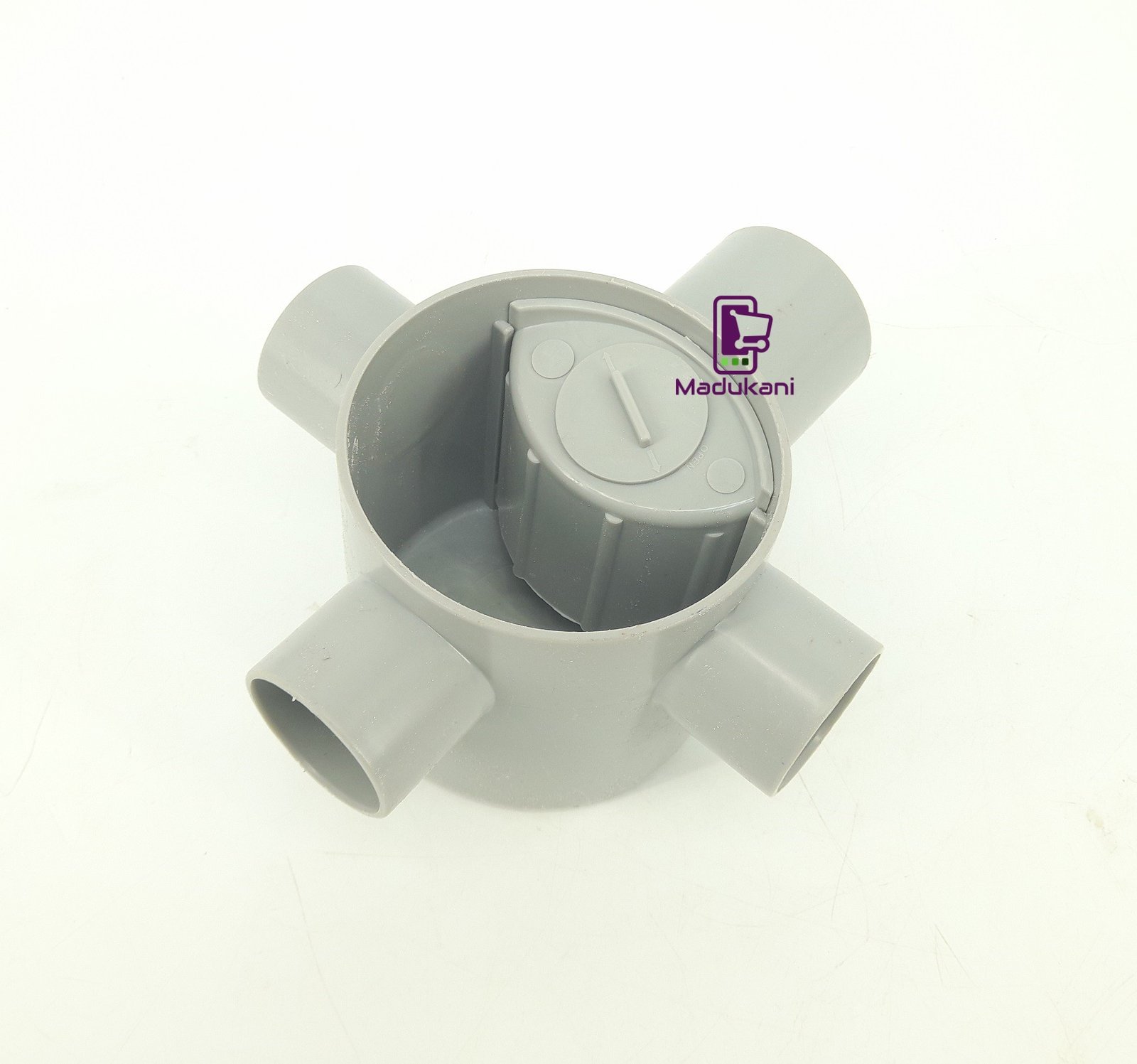

The body includes four 50mm knockout inlets to allow simultaneous connection of various waste lines.

Dual-Finish Grating

• Reversible tray allows for a matching floor tile insert.
• Standard polished stainless steel surface on the alternate side.

Technical Specifications

What’s Included

• 1 x 110mm 4-Way Trap Body

• 1 x Reversible Tile-In / Stainless Steel Grill

• 1 x Internal Debris Filter Basket

• 1 x Removable Foul Air Trap Insert

On-Site & Workshop Notes

• Ensure the trap body is set perfectly level before the final screed pour to prevent pooling around the edges.

• Lubricate the internal O-rings of the trap insert before re-assembly after cleaning to maintain an airtight seal.

• Unused inlets should remain capped or sealed with appropriate PVC solvent cement to prevent leaks during pressure testing.

• The removable basket allows for easy maintenance and clearing of hair or debris without specialized tools.
