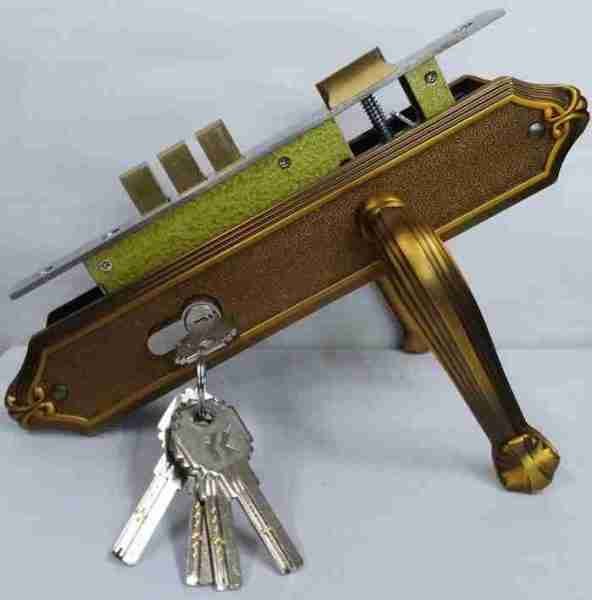

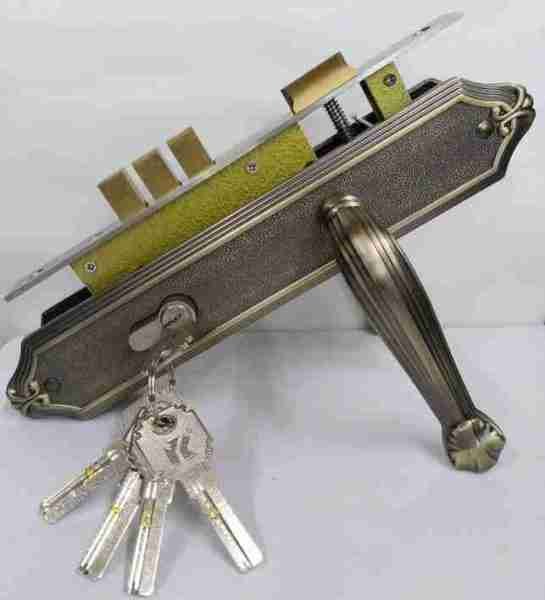

ACC 270 Cylinder Door Lock, Antique Green Finish, Mortise Set

ACC 270 Mortise Lock Set

The ACC 270 Cylinder Door Lock provides a complete security solution for internal and external timber doors requiring a reliable latching and deadbolt mechanism. This hardware set features a durable electroplated antique green finish to resist corrosion in high-humidity environments. Each kit includes a full handle set, a profile cylinder, and a standard mortise lock body compatible with most pre-drilled doors.

Built for the Job

Site supervisors and carpenters specify this hardware for residential and commercial fit-outs where aesthetic consistency and reliable latching are required. The lever action provides ergonomic access for high-traffic areas. Because the system uses a standard Euro-profile cylinder, facility managers can easily re-key or replace the locking core without removing the entire handle assembly or mortise body. The 270mm plate height effectively covers previous screw holes during renovation work, making it a preferred choice for retrofitting older door leaves.

• Residential main entrance and bedroom doors requiring key-controlled security.

• Commercial office internal doors with standard timber or composite construction.

• Replacement hardware for worn 270mm plate handle sets in existing facilities.

Product Highlights

Corrosion Resistant Finish

The antique green electroplating protects the zinc alloy base against oxidation and surface wear.

Standardized Dimensions

• 270mm backplate height covers standard door prep areas.
• 85mm center-to-center distance between handle spindle and cylinder hole.

Technical Specifications

What’s Included

• 2 x Lever Handles on 270mm Backplates

• 1 x Mortise Lock Body

• 1 x Euro Profile Cylinder

• 3 x User Keys

• 1 x Striking Plate and Plastic Dust Box

• Installation Fasteners and 8mm Spindle

On-Site & Workshop Notes

• Ensure the mortise pocket is cut to a depth of 75mm to accommodate the lock case without forcing the faceplate.

• Lubricate the cylinder with graphite powder rather than oil to prevent dust accumulation inside the pin mechanism.

• Check the hand of the door before installation; the latch bolt on this unit is reversible for left or right-hand opening.

• Maintain the finish by wiping with a soft damp cloth; avoid abrasive chemical cleaners that strip the electroplated layer.
