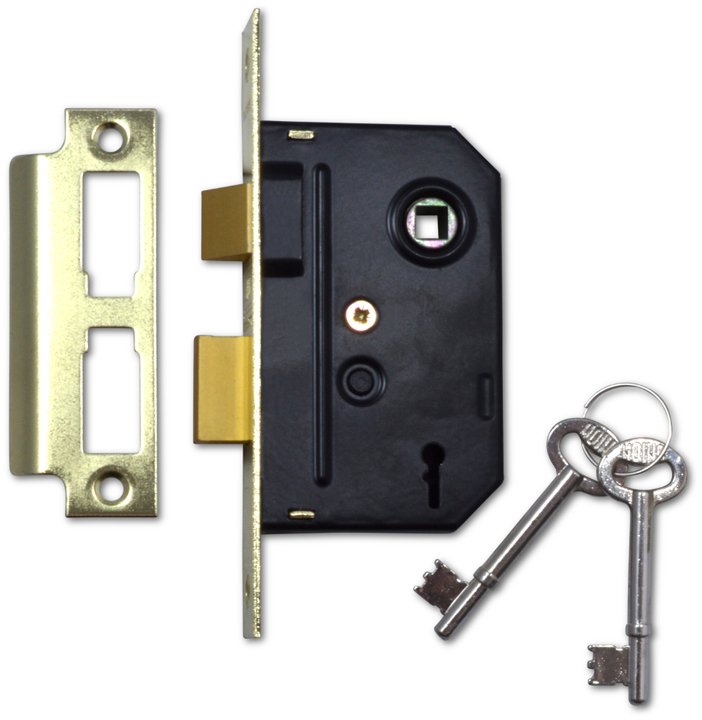

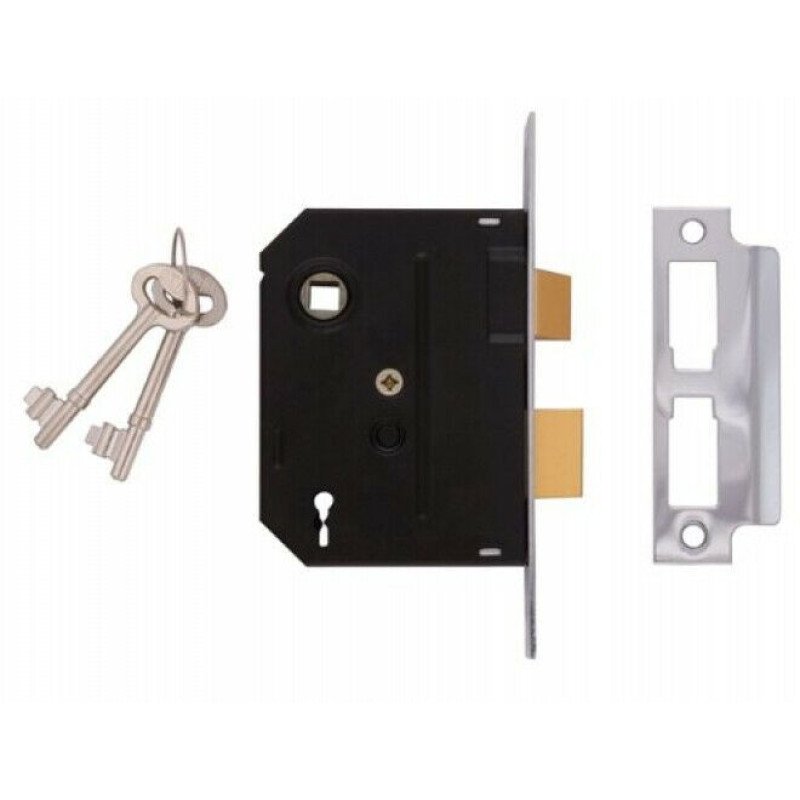

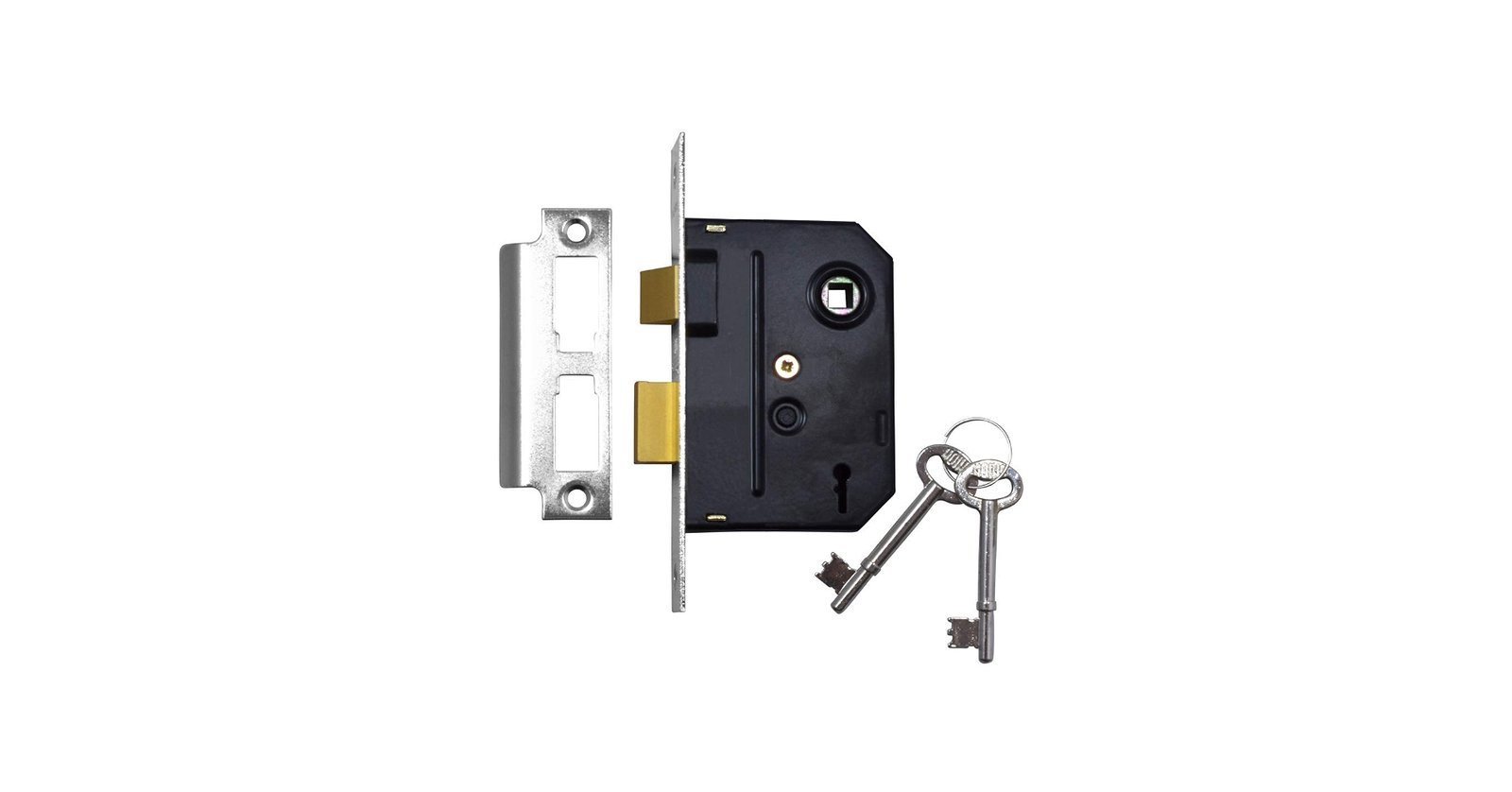

Union 2295 2-Lever Mortice Bathroom Lock, 64mm Case, Satin Chrome

Union 2295 Mortice Lock

The Union 2 Lever Bathroom Lock provides a standard-security privacy solution for internal timber doors in residential and light commercial environments. This hardware features a 64mm case depth and a 44.5mm backset, making it compatible with most standard door preparations. The unit integrates a latch bolt and a deadbolt mechanism designed specifically for use with bathroom turn-and-release furniture.

Built for the Job

Site supervisors and carpenters specify this hardware for internal partitions and bathroom entries where basic privacy is the primary requirement. The steel case construction ensures the internal components remain aligned during heavy daily use. This series is engineered for timber doors ranging from 35mm to 50mm in thickness, providing a flush fit within a standard mortice cutout. The mechanical action is tuned for low-friction operation, reducing wear on the lever handles and turn spindles over time.

• Residential bathroom and ensuite door privacy installations.

• Internal office partitions requiring basic deadbolt locking.

• Volume housing projects using standard 57mm center furniture.

Product Highlights

Reversible Latch Bolt

The latch mechanism can be reversed without opening the lock case to accommodate both left and right-hand door swings.

Durable Construction

• Powder-coated steel case for improved corrosion resistance on site.
• Zinc alloy latch and deadbolt for consistent mechanical performance.

Technical Specifications

What’s Included

• 1 x 2-Lever Mortice Bathroom Lock Case

• 1 x Matching Forend and Strike Plate

• 1 x Set of Wood Fixing Screws

On-Site & Workshop Notes

• Verify that your bathroom furniture uses a 5mm spindle for the turn-and-release before beginning the installation.

• Ensure the mortice pocket is cleared of all wood shavings to prevent the latch spring from binding.

• When reversing the latch, pull the bolt forward and rotate 180 degrees until it clicks back into position.

• Lubricate the internal spring mechanism annually with a dry graphite spray for smooth handle operation.
