3/4″ GI Union

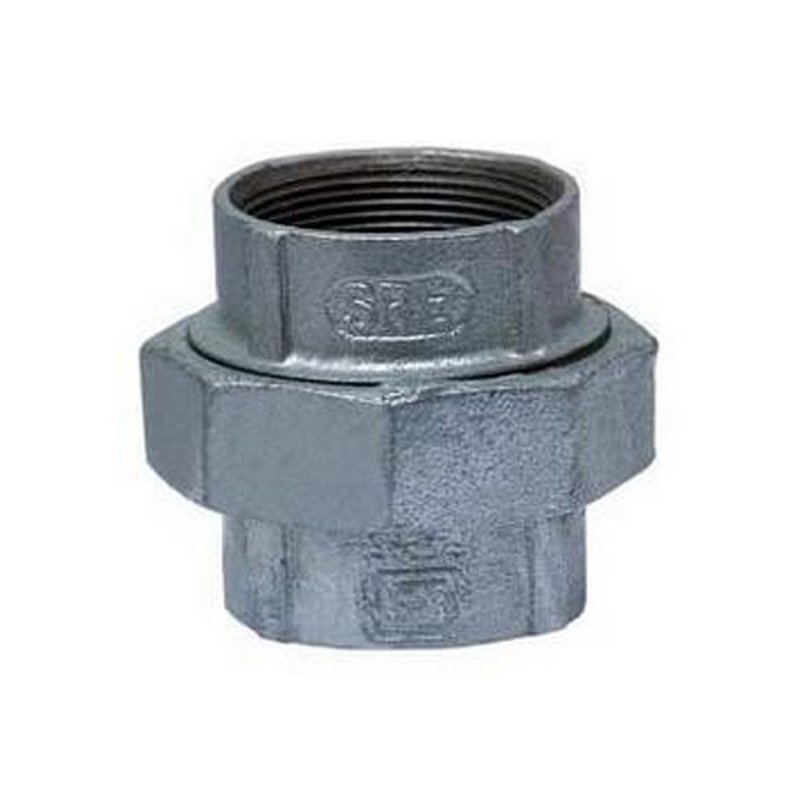

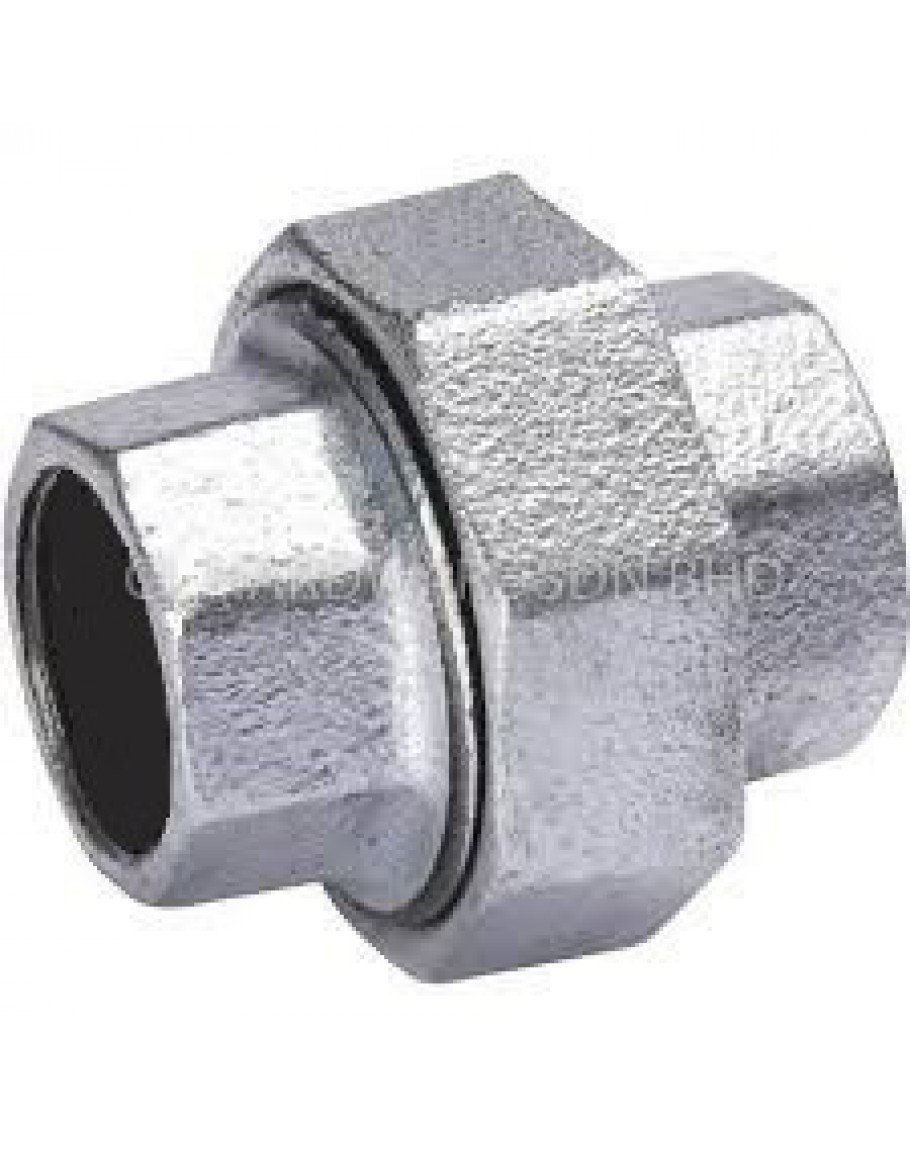

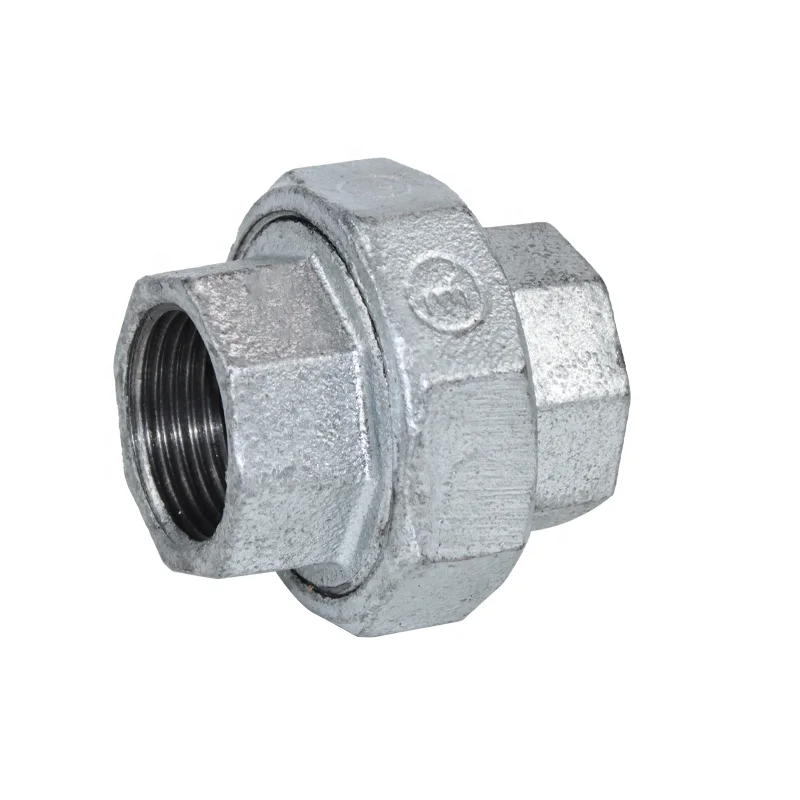

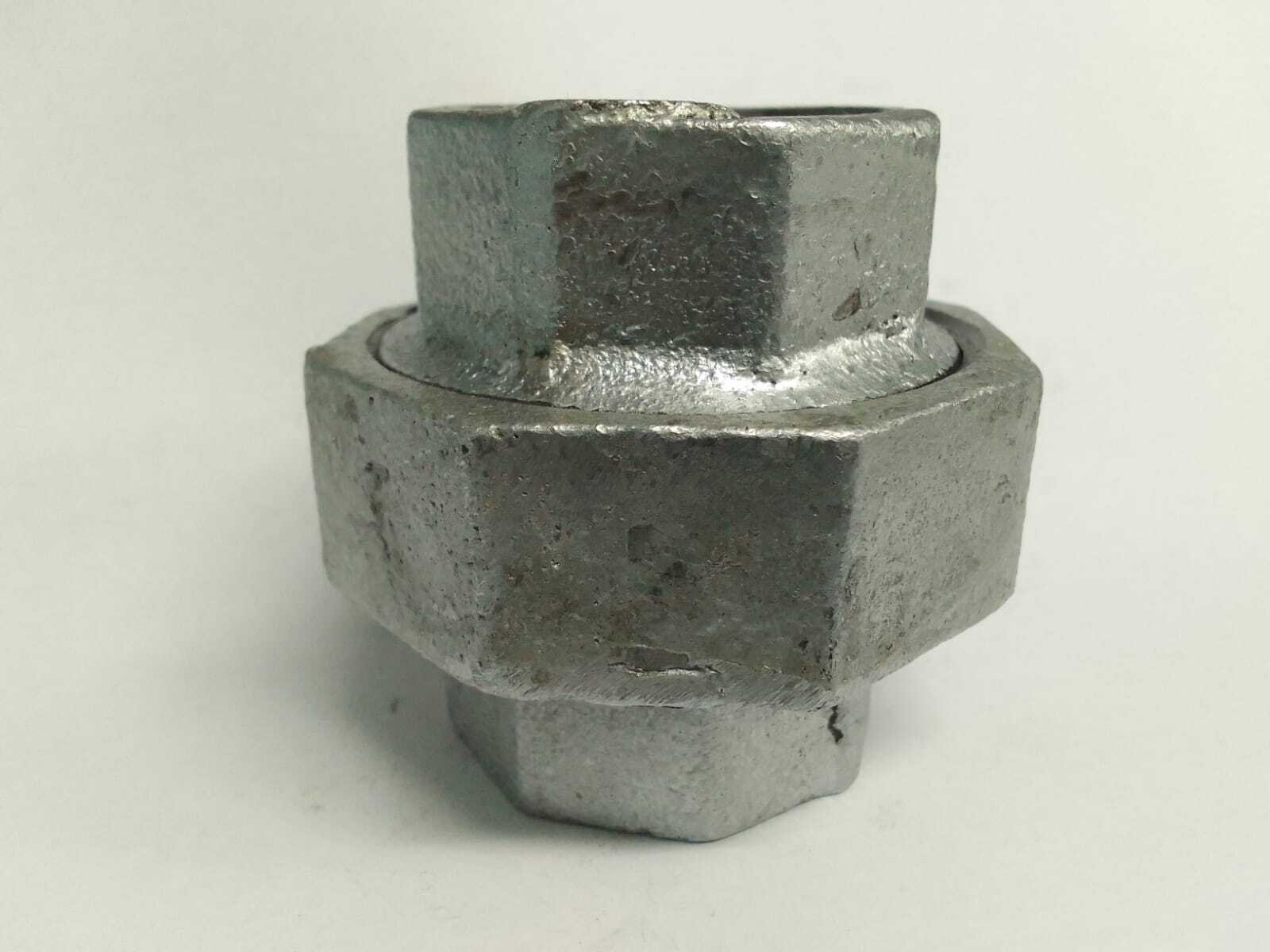

The Standard 3/4″ GI Union is a specialized mechanical fitting designed for connecting two sections of galvanized iron pipe in a way that allows for easy disconnection. Unlike a standard coupling or socket, this component features a three-piece design that can be separated without rotating the adjacent pipes. This functionality is vital for maintenance, repair, or the replacement of valves and pumps within a larger piping network. The fitting is manufactured from high-grade malleable iron and undergoes a hot-dip galvanization process to ensure long-term durability in demanding environments.
Built for the Job
Contractors and site supervisors use this hardware primarily in water supply lines, irrigation systems, and industrial fluid transport. It serves as a disconnect point in pump houses or near water meters where equipment might require servicing. Plumbers find this union indispensable when working in confined spaces where threading long sections of pipe into fixed positions is impossible. The robust design handles the vibration and thermal expansion typical of high-traffic water systems.
-
Connecting water pumps to main distribution lines for easy removal during maintenance cycles.
-
Installing inline filters or valves that require periodic inspection or replacement in commercial sites.
-
Transitioning between fixed galvanized pipe runs in residential and industrial plumbing infrastructure.
Product Highlights
- Heavy-Duty Casting
-
The malleable iron body withstands high mechanical stress and internal pressure without cracking or deforming.
- Protective Finish
-
- Hot-dip galvanized coating resists rust and mineral scaling in hard water areas.
- Durable zinc layer ensures suitability for both indoor and outdoor installations.
Technical Specifications
| Specification | Detail |
|---|---|
| Material | Galvanized Malleable Iron |
| Size | 3/4 Inch (DN20) |
| Thread Type | Female BSP (Tapered) |
| Pressure Rating | PN25 / 362 PSI |
What’s Included
-
1 x 3/4-inch Galvanized Iron Union (comprising nut, head, and tail pieces)
On-Site & Workshop Notes
-
Ensure that the mating surfaces of the ground joint are free of grit or metal shavings before tightening the large nut.
-
Apply professional-grade PTFE thread seal tape to the male pipe threads only; the internal union seat should remain clean for a metal-to-metal seal.
-
Avoid using excessive force with large pipe wrenches to prevent stretching the nut threads or damaging the galvanized coating.
-
Verify that the piping is properly aligned before tightening this 3/4-inch union to prevent cross-threading or uneven seating.
