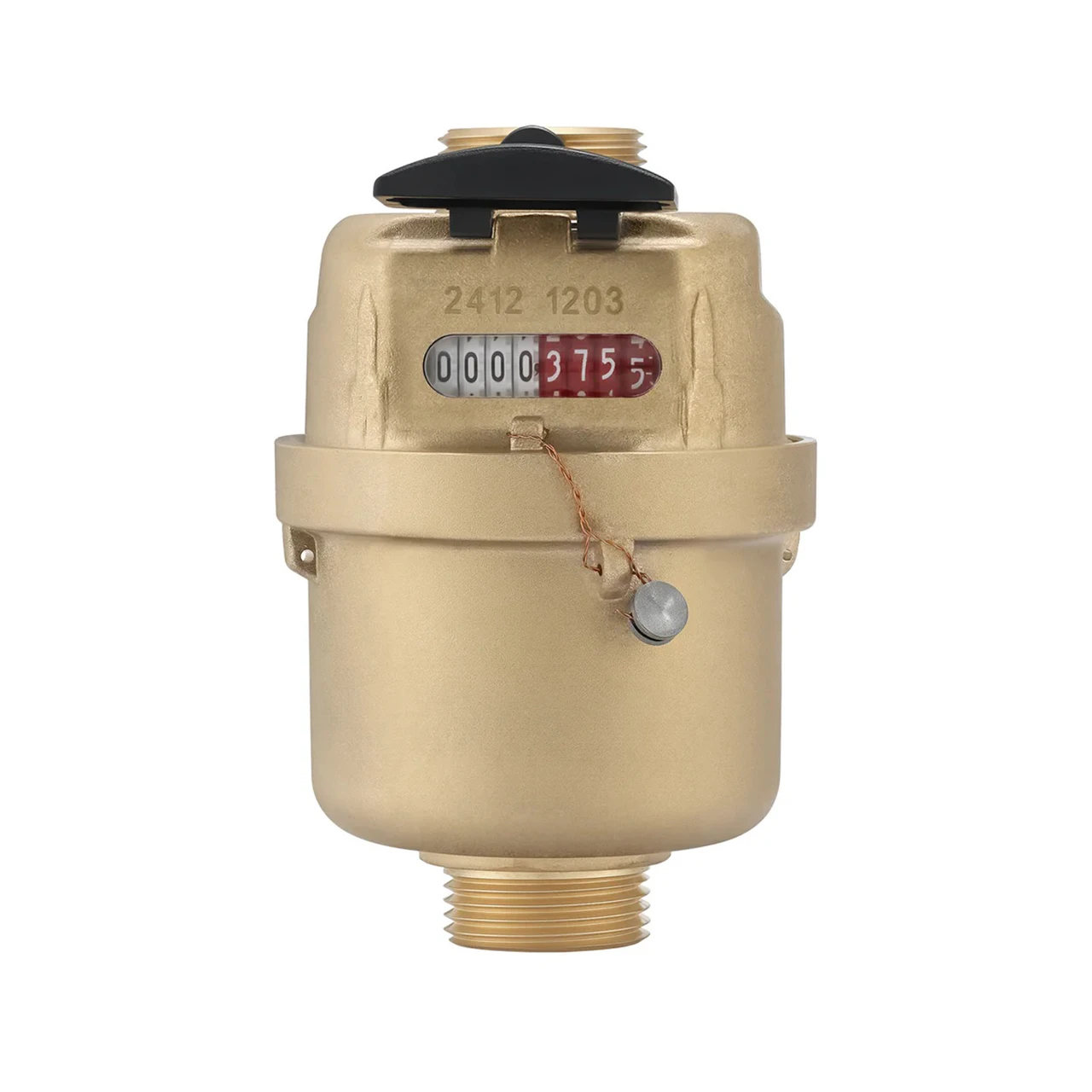

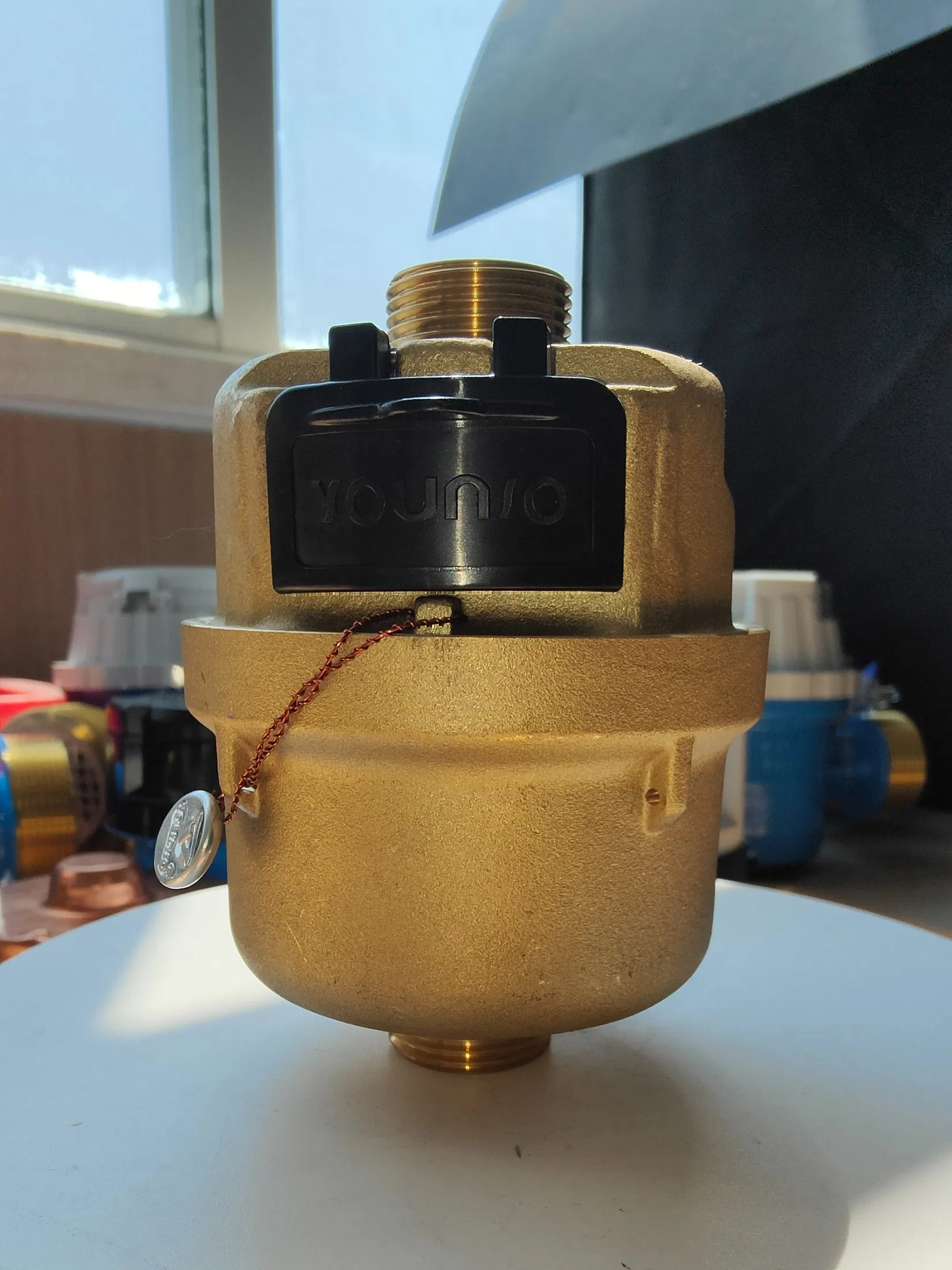

Kent V100 Water Meter
The Kent Water Meter 1/2 is a high-precision volumetric measuring instrument designed for residential and light commercial utility monitoring. This DN15 unit utilizes a rotary piston mechanism to ensure accurate billing even at extremely low flow rates. It meets international standards for water measurement in diverse plumbing environments and sub-metering applications.
Built for the Job
Plumbing contractors and facility managers specify this volumetric meter for its ability to maintain accuracy in any orientation. Unlike standard velocity meters, the piston-driven design captures flow data regardless of horizontal, vertical, or inclined installation. This flexibility is vital in tight mechanical rooms or retrofitted residential units where pipe runs are restricted. The brass body provides the structural integrity required to withstand pressure surges and environmental stress in Kenyan plumbing systems. It serves as a reliable tool for revenue collection and leak detection in multi-dwelling units.
-
Residential sub-metering for apartments and gated communities to ensure fair billing.
-
Industrial process monitoring where precise low-flow liquid measurement is required.
-
Commercial facility management for tracking water consumption across different zones.
Product Highlights
- High-Precision Measurement
-
The rotary piston design achieves Class C accuracy ratings, detecting leaks that standard meters often miss.
- Tamper-Proof Construction
-
- Integrated security wire holes prevent unauthorized removal or adjustment of the register.
- The robust internal components resist magnetic interference common in fraudulent utility bypass attempts.
Technical Specifications
| Specification | Detail |
|---|---|
| Nominal Diameter | 1/2 Inch (DN15) |
| Meter Type | Volumetric Rotary Piston |
| Accuracy Class | Class C / R160 |
| Maximum Pressure | 16 Bar (PN16) |
| Max Temperature | 50°C (Cold Water) |
| Body Material | Corrosion-Resistant Brass |
What’s Included
-
1 x Kent V100 DN15 Water Meter Body
-
2 x Brass Tailpiece Connectors with Gaskets
On-Site & Workshop Notes
-
Always flush the supply lines thoroughly before installing the measuring device to prevent debris from clogging the piston.
-
Install an upstream strainer if the water source contains high levels of suspended solids or sediment.
-
The register is hermetically sealed to prevent fogging, ensuring clear readability throughout the service life of the hardware.
-
Ensure the flow direction arrow on the brass casing aligns with the actual water path during final assembly.
