Mild Steel Angle Bar 1-1/2″ x 1/8″ Equal Leg Structural Steel

Mild Steel Angle Bar

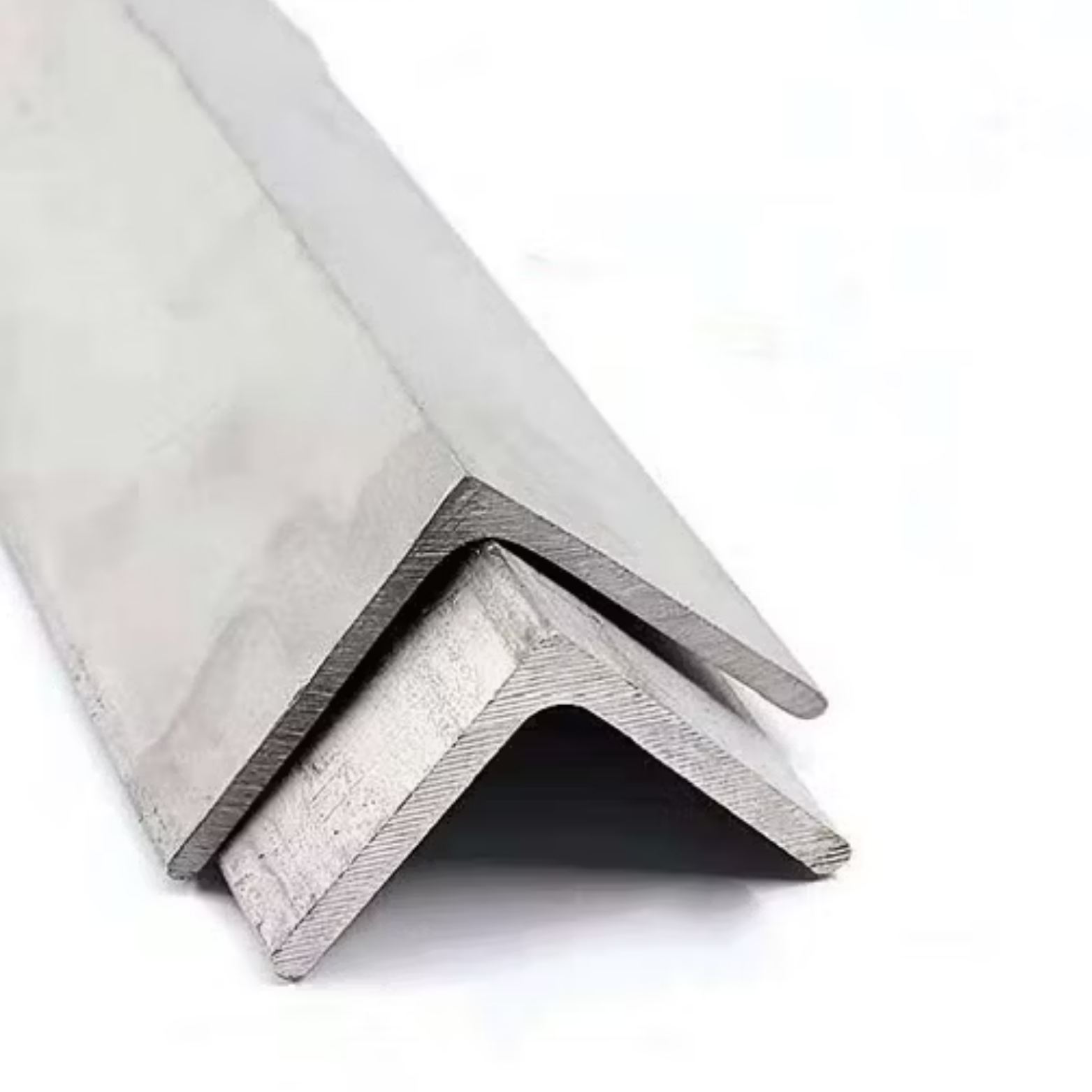

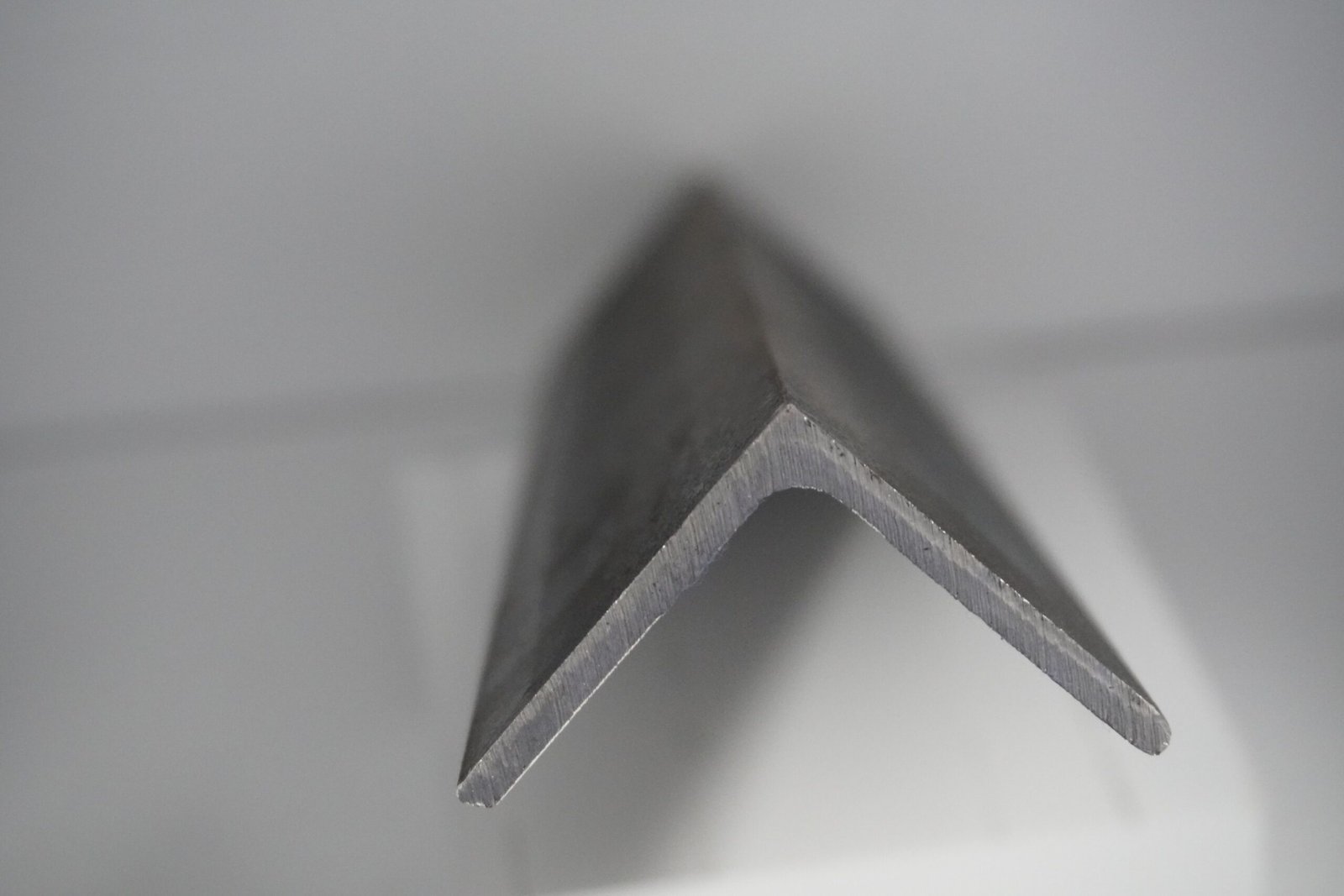

The Mild Steel Angle Bar 1-1/2″ x 1/8″ Equal Leg Structural Steel provides essential reinforcement and framing capabilities for a wide range of metalwork and construction projects. This hot-rolled L-profile section features equal legs of 38.1mm with a 3.175mm wall thickness, ensuring consistent structural integrity across the entire length of the member.

Built for the Job

Structural steel angles are the backbone of light-to-medium fabrication. This specific 1-1/2 inch profile offers a balance between weight and rigidity, making it a standard choice for site supervisors and fabricators working on secondary steelwork. The mild steel composition allows for easy machining, including drilling and punching, while maintaining excellent weldability using standard MIG, TIG, or Stick welding processes. On-site, these sections are frequently used to create rigid frames that require high resistance to bending and torsion.

• Fabrication of industrial shelving units and workbench frames in workshops.

• General bracing for timber structures and masonry wall reinforcement.

• Construction of gate frames, trailers, and protective edge guards.

Product Highlights

Hot-Rolled Manufacturing

The production process ensures a uniform grain structure throughout the metal for predictable load-bearing performance.

Dimensional Precision

• Exact 90-degree internal angle for flush fitment against flat surfaces.
• Consistent 1/8 inch thickness prevents weak points during heavy loading.

Technical Specifications

What’s Included

• 1 x Mild Steel Equal Angle Section (Standard lengths apply)

On-Site & Workshop Notes

• Surface mill scale should be removed using a wire brush or grinder prior to welding for maximum penetration.

• Raw steel is susceptible to oxidation; apply a zinc-rich primer or industrial coating immediately after installation.

• When drilling, use a cobalt or high-speed steel bit with cutting fluid to manage heat buildup in the 3mm section.

• Store the material in a dry environment off the ground to prevent flash rusting before fabrication begins.
