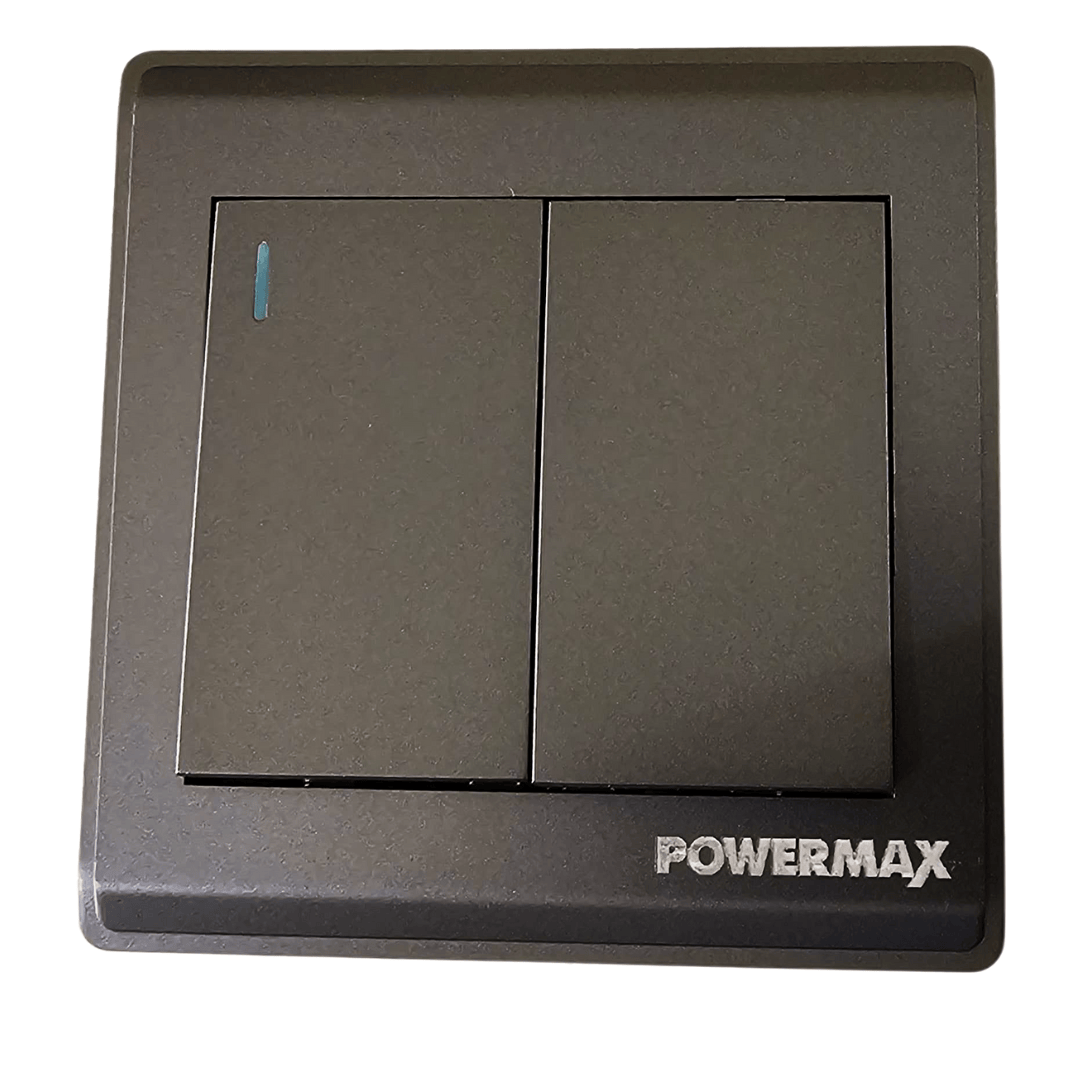

Powermax BSR 2-Gang Switch
The Powermax BSR Black Switch provides a high-performance electrical interface for dual-circuit control in commercial and residential power systems. It supports 10AX current loads at a nominal voltage of 250V AC. This specific configuration allows for 2-way operation. Technicians utilize this feature to control a single load from two separate locations. The unit integrates into standard electrical infrastructure using conventional wiring protocols. Its modular design ensures compatibility with existing BSR series mounting hardware and accessories.
The external plate utilizes high-density polycarbonate. This resin provides high impact resistance and thermal stability. The matte black pigment is integrated directly into the material. This prevents surface scratching from revealing underlying colors or textures. The material includes UV-stabilizing agents. These agents prevent polymer degradation when exposed to indirect sunlight in office environments. This ensures the structural integrity of the faceplate over long-term deployment cycles.
The internal switching mechanism employs silver-nickel alloy contact points. These contacts resist pitting and welding during high-inrush current events. This is particularly important when controlling LED drivers or inductive fluorescent ballasts. The 10AX rating signifies the device handles inductive loads effectively without premature contact failure. The rocker action provides a positive break-before-make transition. This ensures complete circuit isolation during the switching phase to prevent internal arcing.
Terminal blocks are constructed from solid brass for maximum conductivity. They feature a funnel-entry design to guide stripped conductors into the clamp. This design reduces the risk of stray wire strands causing short circuits behind the plate. The terminals accept up to two 2.5mm² cables or one 4.0mm² cable. Captive M3.5 screws ensure the fastening hardware remains attached to the terminal housing during the installation process. This prevents the loss of small components in complex work environments.
This hardware meets the requirements of BS EN 60669-1 standards. It undergoes rigorous testing for insulation resistance and dielectric strength. The design includes a protective shroud over the live components. This enhances safety for the installer during the mounting process. The unit fits into a standard 35mm deep back box for optimal wire clearance. Screw caps are provided to obscure the mounting hardware after installation is complete.
Key Features
-
Dual-Gang Configuration
Enables independent control of two separate lighting circuits from a single mounting point. -
Two-Way Switching Logic
Supports multi-point control schemes for corridors, stairwells, and large open-plan office spaces. -
Contact Metallurgy
- Silver-nickel alloy contact points
- High resistance to electrical arcing
- Extended mechanical life exceeding 40,000 cycles
-
Material Properties
- Fire-retardant polycarbonate housing
- High-impact resistance for high-traffic areas
- Matte black UV-stabilized finish
Specifications
| Feature | Specification |
|---|---|
| Current Rating | 10AX |
| Voltage Rating | 250V AC, 50/60Hz |
| Gang Count | 2-Gang |
| Switching Way | 2-Way |
| Material | Polycarbonate (Flame Retardant) |
| Color | Black |
| Standard Compliance | BS EN 60669-1 |
| Terminal Capacity | 2 x 2.5mm² or 1 x 4.0mm² |
| Mounting Type | Flush Mount (Standard 86mm Box) |
What’s in the Box
-
1 x Powermax BSR Black 2-Gang 2-Way Switch
-
2 x M3.5 Mounting Screws
-
2 x Screw Cover Caps
Why Choose Powermax BSR 2-Gang Switch
-
Reliable dual-circuit management for professional electrical installations.
-
Simplified wiring with clearly marked L1, L2, and Common terminals.
-
Robust build quality designed for high-traffic commercial zones.
-
Standardized dimensions ensure compatibility for retrofit or new-build projects.
