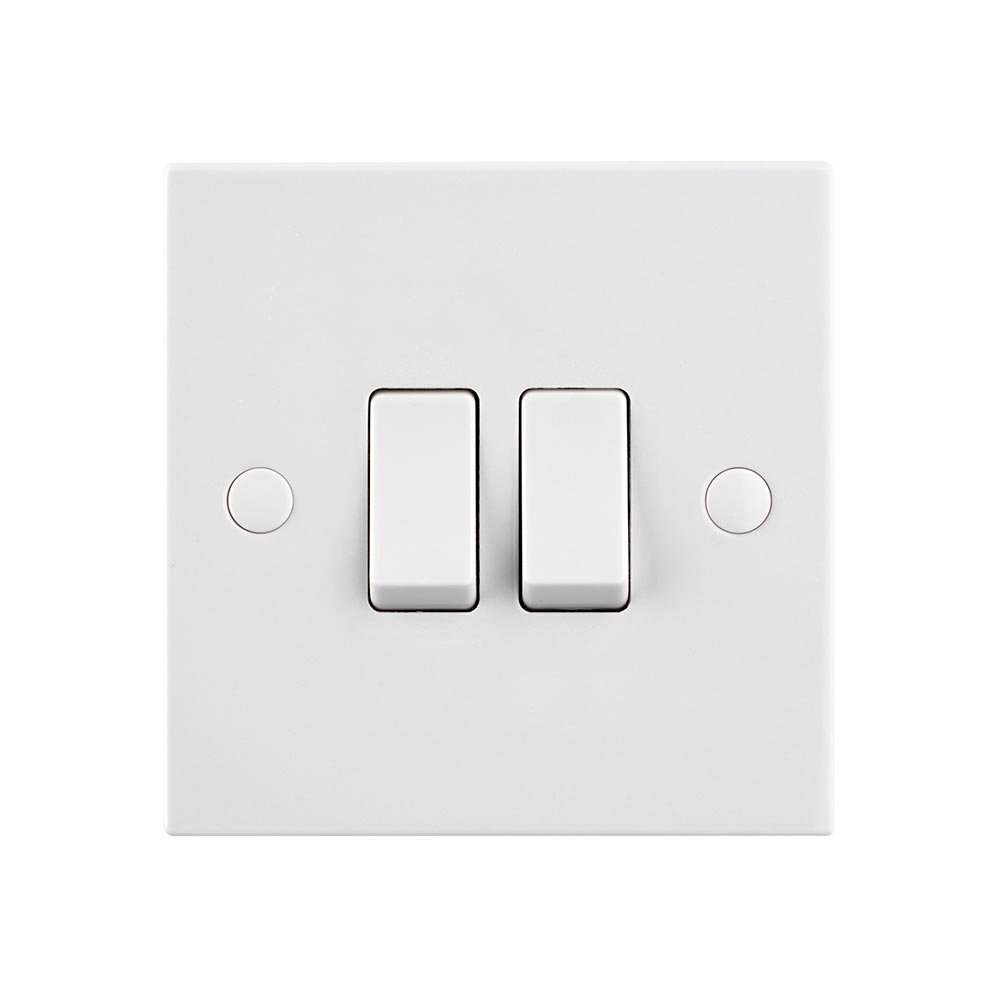

Powermax Slim Switch
The Powermax Slim 2-Gang Switch facilitates independent control of two separate lighting circuits from multiple locations within a building. This unit utilizes a low-profile faceplate design for flush installation in commercial and residential electrical systems. It operates on a standard 250V AC supply with a 10AX current rating suitable for inductive loads. The dual-control capability allows for efficient management of lighting in corridors, stairwells, and large rooms where entry and exit points require accessible toggles.
Electrical engineers specify this component for projects requiring high-density switching in a compact footprint. The internal mechanism features high-conductivity copper alloy contacts to minimize resistance and heat buildup. This construction ensures stable performance during continuous operation. The external housing consists of flame-retardant polycarbonate that resists impact and UV-induced yellowing. This material selection maintains structural integrity in high-traffic environments while providing essential insulation properties.
Installation efficiency remains a priority for the Slim series hardware. The rear assembly includes clearly marked terminals for Common, L1, and L2 wiring configurations. Captive terminal screws prevent hardware loss during the mounting process in tight spaces. This device fits standard 25mm or 35mm mounting boxes. Supplied screw covers hide the fixing points to maintain a clean aesthetic after the final commission. The rocker switch provides distinct tactile feedback to confirm circuit state changes for the user.
Reliability is verified through mechanical cycle testing to simulate years of heavy use. The 10AX rating specifically supports modern lighting technologies including LED drivers and fluorescent ballasts. These loads often produce high inrush currents that standard 10A switches cannot handle long-term. By adhering to BS EN 60669-1 standards, this hardware meets rigorous safety and performance criteria for low-voltage electrical installations. The white finish provides a neutral appearance that integrates into various architectural designs without drawing unnecessary attention to the hardware.
Key Features
-
Dual-Point Control
Enables the operation of two separate light sources from two different switch positions. -
Inductive Load Compatibility
Handles 10AX ratings to ensure durability when switching LED and fluorescent lighting systems. -
Low-Profile Geometry
- Minimal faceplate protrusion from the wall surface
- Fits standard UK-style 86mm square mounting patterns
- Includes screw caps for a concealed fastener finish
-
Terminal Security
Large brass terminals provide secure cable retention for 1.5mm to 2.5mm conductors.
Specifications
| Feature | Specification |
|---|---|
| Brand | Powermax |
| Series | Slim Series |
| Gang Count | 2 Gang |
| Switching Way | 2 Way |
| Current Rating | 10AX |
| Voltage | 250V AC |
| Material | Polycarbonate (Flame Retardant) |
| Standard Compliance | BS EN 60669-1 |
| Mounting Depth | 25mm Minimum |
| Carton Quantity | 100 pcs |
What’s in the Box
-
1 x Powermax Slim 2-Gang 2-Way Switch
-
2 x Mounting Screws
-
2 x Screw Cover Caps
Why Choose Powermax Slim Switch
-
High-grade copper alloy internals ensure long-term electrical conductivity and heat dissipation.
-
Tough polycarbonate construction provides resistance against physical impact and environmental degradation.
-
Standardized terminal layouts reduce the time required for multi-gang wiring in large-scale deployments.
Josphat Mwangi (verified owner) –
I replaced the old bulky switches in my corridor with these Powermax Slim ones. The 2-way function is exactly what I needed for the staircase lights. Very sleek look, doesn’t stick out too much from the wall. Good value for money and the plastic feels durable.
Sarah Atieno (verified owner) –
Satisfied with the purchase. The ‘click’ feels firm and not cheap like some others in the market. I used them for the master bedroom where I needed to control the main light from the door and the bedside. Delivery to Thika was also quite fast.
Kevin K. (verified owner) –
Safi sana. Very clean look on the wall and the price is the best I’ve found in Nairobi so far.
Eng. Mutua (verified owner) –
Did a full renovation for a client in Kilimani and used these throughout. The 10AX rating handles the LED load without any issues. They look much more premium than they actually cost. Highly recommend for any modern office or residential fit-out.
Fatma Hassan (verified owner) –
The switch design is actually very nice and slim as advertised. My only small issue was that the screws in the box were slightly short for my deep conduit boxes, so I had to use my own. But the switch mechanism itself is top notch and very quiet.
