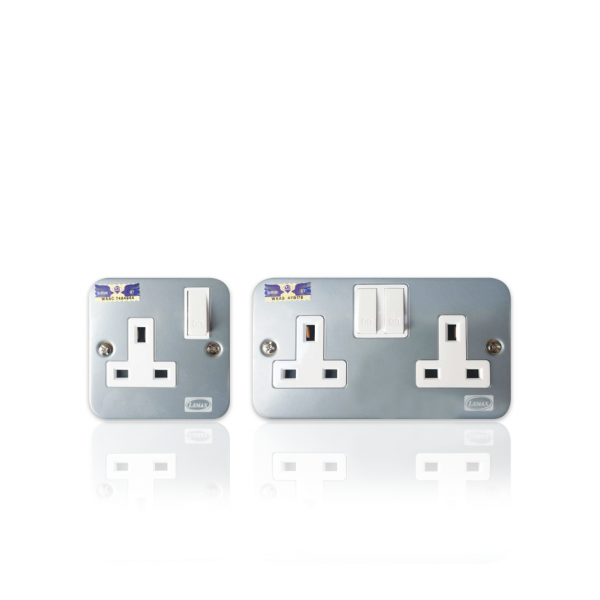

Powermax Metal Clad Socket
The Powermax 13A Metal Socket provides a high-durability electrical interface for demanding industrial and commercial environments. This unit utilizes a heavy-gauge steel enclosure to withstand mechanical impacts in warehouses or workshops. It complies fully with BS 1363-2 safety standards. The surface-mounted design simplifies installation on masonry or steel structures. Each unit features a single-pole switch for localized power control. The grey powder-coated finish resists chemical corrosion and scratches. This electrical component serves as a reliable termination point for high-traffic utility zones.
Key Features
-
Reinforced Steel Construction
The chassis consists of zinc-coated steel with an epoxy powder finish to prevent oxidation in humid environments. -
Advanced Terminal Architecture
- Terminal capacity supports up to three 2.5mm² cables or two 4.0mm² conductors.
- Captive screws prevent component loss during high-volume site installations.
- Color-coded markings ensure correct polarity alignment for field technicians.
-
Integrated Safety Shutters
Dual-action shutters restrict access to live internal components until a standard plug earth pin inserts. -
Flexible Conduit Entry
- The back box includes multiple 20mm knockouts for versatile cable routing.
- Threaded entry points facilitate secure attachment to rigid steel conduit systems.
-
Switch Performance
The rocker mechanism undergoes testing for over 15,000 operations under full inductive load conditions.
Specifications
| Feature | Specification |
|---|---|
| Current Rating | 13 Amperes |
| Voltage Rating | 250V AC, 50/60Hz |
| Socket Type | 1-Gang Switched (Type G) |
| Material | Mild Steel (Epoxy Coated) |
| Compliance | BS 1363-2 |
| IP Rating | IP20 (Internal Use) |
| Mounting Type | Surface Mount |
| Terminal Capacity | 3 x 2.5mm² / 2 x 4.0mm² |
What’s in the Box
-
1 x Powermax SKT-PMM13 Single Socket Faceplate
-
1 x Surface Mount Metal Back Box
-
2 x Fixing Screws
-
1 x Earth Link Wire
Why Choose Powermax Metal Clad
-
The steel-clad outlet offers superior impact resistance compared to standard urea-molded plastic alternatives.
-
Pre-fitted earth terminals inside the back box reduce assembly time for electrical contractors.
-
The low-profile rocker switch prevents accidental activation while maintaining a positive tactile response.
-
Standardized knockout positions allow for rapid daisy-chaining of multiple units in industrial power grids.
Mercy Wambui (verified owner) –
It does the job well, though the grey finish had a very small scratch on one of the units I received. Not a big deal since it’s for the pantry area, but just check them on delivery. Works perfectly otherwise and feels like it will last a long time.
Beatrice Atieno (verified owner) –
Ordered 10 units for our small office renovation in Westlands. The pricing is better than most hardware shops in town and the build quality is decent for the price. They feel very sturdy.
Maina Kamau (verified owner) –
This Powermax metal clad is very solid. Used it in my garage and it handles the heavy power tools well. Much better than the plastic ones that keep cracking.
Samuel Gichuru (verified owner) –
The SKT-PMM13 is a good choice if you are tired of plastic sockets breaking in high-traffic areas. The switch has a firm, nice click to it. Installation was straightforward, though I’d advise having your own wall plugs ready just in case. Otherwise, a top product for industrial use.
Evans Omondi (verified owner) –
Fitted these in the store. Delivery was fast, arrived the next day as promised. Good stuff.
Josphat Nyongesa (verified owner) –
Standard 13A socket but the metal casing makes it feel more premium and durable. Powermax is becoming my go-to for these electrical fittings for my clients. No complaints so far.
