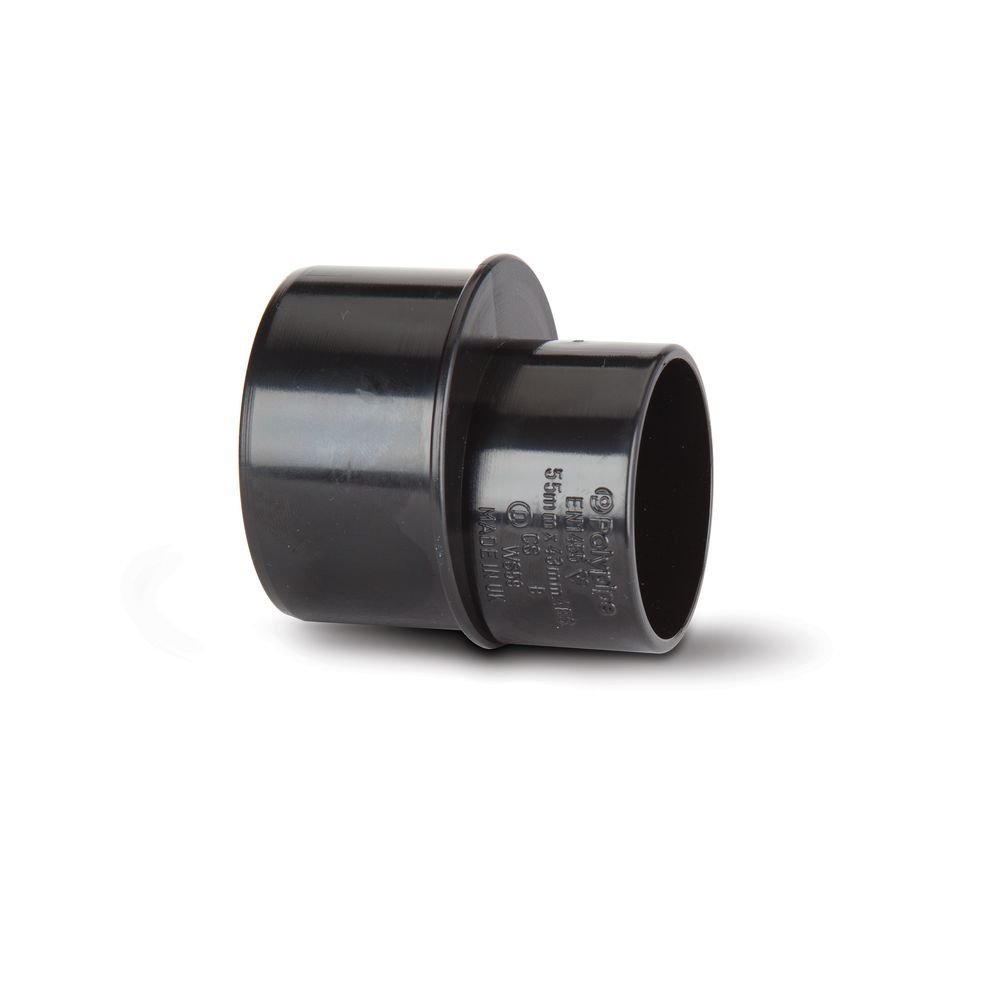

Standard PVC Waste Reducer 1½ Inch x 1¼ Inch Solvent Weld

PVC Waste Reducer 1½” x 1¼”

The Standard PVC Waste Reducer 1½ Inch x 1¼ Inch Solvent Weld enables reliable diameter transitions in domestic and commercial sanitary drainage systems. This fitting utilizes high-grade unplasticized polyvinyl chloride to ensure long-term structural integrity and chemical resistance. It facilitates the immediate reduction of a waste line from 40mm to 32mm, allowing for compact installations in confined plumbing voids or behind basin pedestals.

Built for the Job

Plumbing contractors use this component to bridge the gap between different waste pipe sizes, typically when connecting a standard wash hand basin trap to a larger secondary discharge branch. The fitting features a precision-molded socket that ensures an interference fit before the application of solvent cement. The internal bore is finished to a high standard to minimize the risk of biofilm buildup or debris snagging, which is critical for maintaining flow rates in gravity-fed systems. The uPVC construction remains stable under varying domestic water temperatures and resists the corrosive effects of household detergents and bleach.

• Connecting 32mm basin waste traps to 40mm branch pipes.

• Reducing main waste stacks for specialized appliance drainage.

• Retrofitting existing drainage systems where pipe diameters vary by generation.

Product Highlights

Chemical and Thermal Stability

The uPVC material withstands continuous discharge temperatures up to 60 degrees Celsius and resists a wide range of acidic and alkaline cleaning agents.

Solvent Weld Connection

• Creates a permanent chemical bond stronger than the pipe material.
• Ensures a completely leak-proof joint when installed with BS EN 14680 compliant cement.

Technical Specifications

What’s Included

• 1 x PVC Waste Reducer 1½” x 1¼” Solvent Weld Fitting

On-Site & Workshop Notes

• Always deburr and chamfer the pipe ends before attempting to seat the fitting into the socket.

• Clean both the pipe exterior and the fitting interior with a dedicated pipe cleaner to remove grease before applying solvent cement.

• Hold the joint firmly for 30 seconds after assembly to prevent the pipe from pushing out of the tapered socket during the initial set.

• Store these fittings away from direct sunlight if kept on-site for extended periods to prevent UV degradation.
