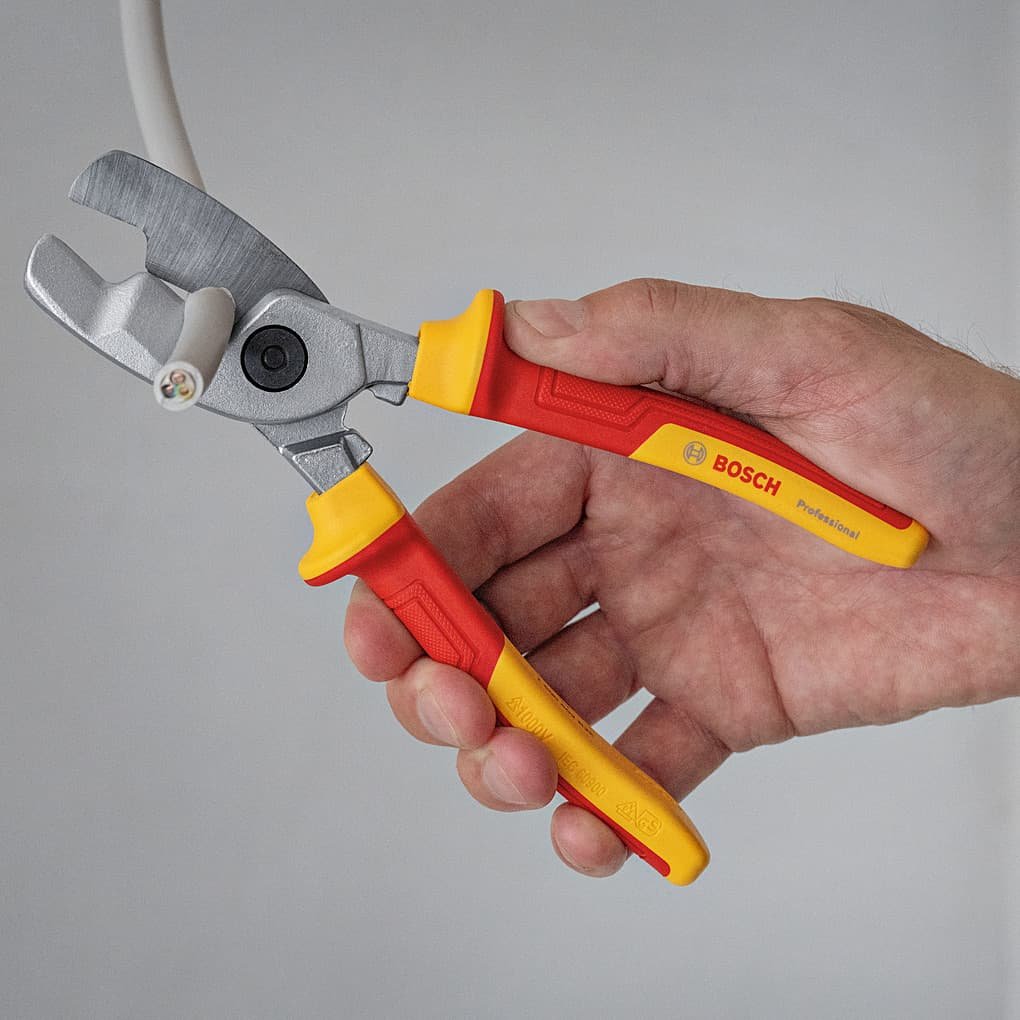

Bosch VDE Cable Shear 200mm
The Bosch VDE Cable Shear provides professional electricians with a high-leverage cutting solution for copper and aluminum cables. Rated for live-line work up to 1000V AC, this tool ensures operator safety during panel builds and industrial installations. The precision-ground bypass blades deliver clean, burr-free cuts without crushing the internal conductors.
Built for the Job
This specialized hand tool is designed for the rigorous demands of commercial electrical sites and maintenance workshops. The bypass cutting geometry allows for significantly lower physical effort compared to standard diagonal cutters when processing thicker multi-core cables. It is specifically engineered for non-ferrous materials, making it an essential asset for wiring distribution boards, control panels, and heavy-duty electrical enclosures.
-
Cutting and stripping large diameter copper conductors.
-
Sizing aluminum feeder cables for industrial machinery.
-
Safe operation in proximity to live components.
Product Highlights
- VDE Certified Insulation
-
The tool undergoes rigorous dielectric testing to meet DIN EN/IEC 60900 standards for protection up to 1000V.
- High-Grade Construction
-
- Forged from Chrome Vanadium Steel (CrV) for long-term edge retention.
- Hardened cutting edges designed specifically for repetitive shearing tasks.
Technical Specifications
| Specification | Detail |
|---|---|
| Total Length | 200mm |
| Max Cutting Capacity | 20mm / 70mm² |
| Material | Chrome Vanadium Steel (CrV) |
| Safety Rating | VDE / 1000V Insulated |
| Handle Type | Multi-component with Slip Guards |
What’s Included
-
1 x Bosch Professional 200mm VDE Insulated Cable Shear
On-Site & Workshop Notes
-
Always inspect the handle insulation for nicks or deep scratches before working on live circuits.
-
These shears are strictly for copper and aluminum; do not use them on steel wire or ACSR to avoid blade damage.
-
The integrated slip guards prevent the user’s hand from sliding toward the conductive metal head during use.
-
Keep the pivot point lightly oiled to maintain the smooth shearing action required for precision work.
