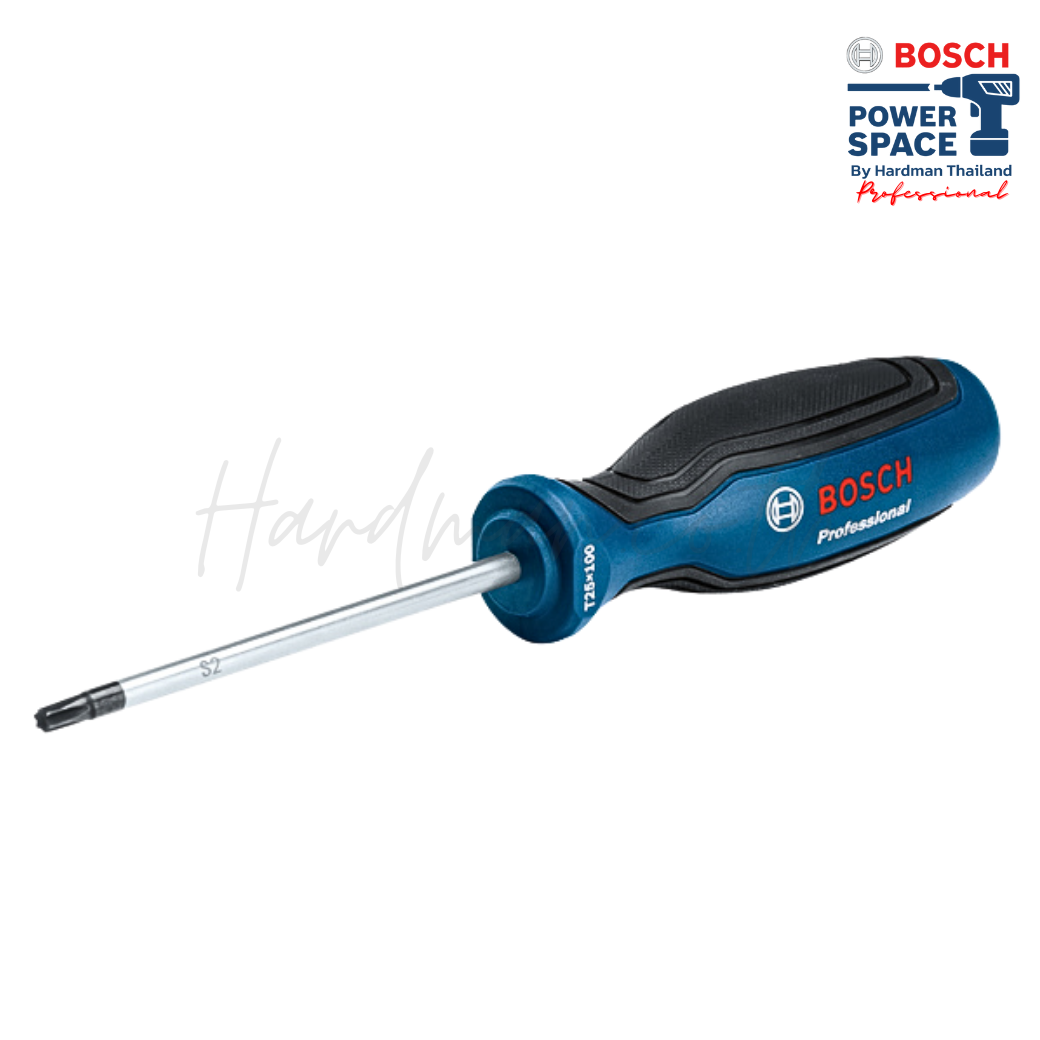

Bosch TX 25 VDE Screwdriver
The Bosch VDE TX 25 x 100mm Torx Screwdriver provides essential insulation for electrical installations and industrial maintenance tasks. This professional-grade hand tool features a 100mm shaft length and is rated for work on live components up to 1000V AC. It meets the rigorous IEC 60900 international safety standards required for site compliance.
Built for the Job
Modern electrical panels, circuit breakers, and terminal blocks increasingly utilize Torx drive profiles to ensure higher torque transfer without the risk of cam-out. This tool allows electricians to secure high-pressure connections in consumer units and distribution boards where standard slotted or Phillips drivers would slip. The insulated shaft is narrow enough to access deeply recessed screws often found in modern switchgear and protective housing.
-
Installation of RCDs, MCBs, and RCBOs requiring TX 25 drive profiles.
-
Maintenance of industrial control panels and automation equipment.
-
Secure fastening of earthing bars and heavy-duty terminal connectors.
Product Highlights
- VDE Certified Insulation
-
Each driver undergoes individual testing in a water bath at 10,000V to guarantee safe operation at the rated 1,000V limit.
- Professional Ergonomics
-
- Soft-grip handle design reduces hand fatigue during repetitive high-torque applications.
- Anti-roll handle shape ensures the tool remains stationary when placed on sloped surfaces or ladders.
Technical Specifications
| Specification | Detail |
|---|---|
| Tip Profile | Torx (TX 25) |
| Shaft Length | 100mm |
| Insulation Rating | 1000V AC |
| Safety Certification | IEC 60900 |
| Blade Material | S2 Tool Steel |
What’s Included
-
1 x Bosch Professional VDE TX 25 x 100mm Screwdriver
On-Site & Workshop Notes
-
Inspect the red insulation layer before every use; if the yellow core becomes visible through nicks or cracks, replace the tool immediately.
-
The S2 steel core provides high rigidity, but users should avoid using the driver as a pry bar to maintain the integrity of the protective coating.
-
Clean the handle with a dry cloth to maintain grip; avoid chemical solvents that may degrade the insulated thermoplastic elastomer over time.
