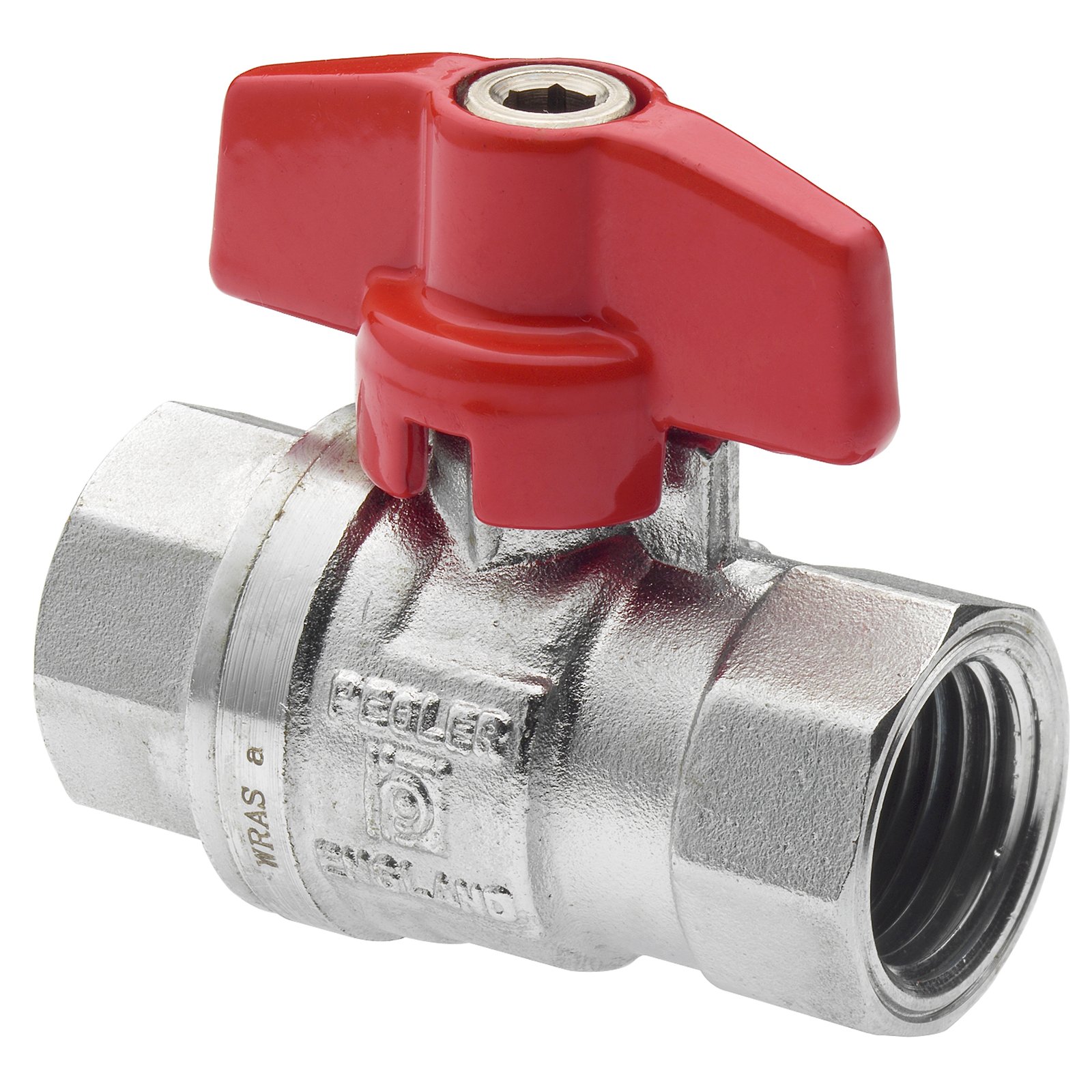

Pegler Full Bore Ball Valve
The Pegler 1 Inch Valve is a heavy-duty flow control component designed for high-pressure fluid management in residential and commercial plumbing. This forged brass fitting provides reliable isolation for water, heating, and compressed air systems. It meets rigorous PN25 pressure standards for industrial site compliance.
Built for the Job
Site supervisors and plumbers specify this 25mm isolator for critical shut-off points in mains water distribution. The full bore design ensures that there is no restriction to the fluid path when the lever is open, preventing pressure drops across the system. This makes the component suitable for high-flow requirements where efficiency is paramount. The forged brass body resists seasonal temperature fluctuations and structural stress during installation. Its robust construction allows it to withstand the rigors of a busy construction site or a demanding mechanical room environment.
-
Isolation of main water supply lines in commercial buildings.
-
Flow control in industrial compressed air piping networks.
-
Shut-off functionality for HVAC heating and cooling loops.
Product Highlights
- High-Pressure Performance
-
The unit is rated to PN25, allowing for safe operation in systems with working pressures up to 25 bar.
- Precision Engineering
-
- Chrome-plated brass ball ensures smooth operation and reduces friction during cycling.
- PTFE seats provide a bubble-tight seal to prevent downstream leakage when closed.
- Blowout-proof stem prevents internal components from ejecting under extreme pressure surges.
Technical Specifications
| Specification | Detail |
|---|---|
| Nominal Diameter | DN25 (1 Inch) |
| Pressure Rating | PN25 |
| Thread Standard | BSP Female x Female |
| Body Material | Forged Brass |
| Temperature Range | -10°C to 110°C |
| Handle Style | Steel Lever with Sleeve |
What’s Included
-

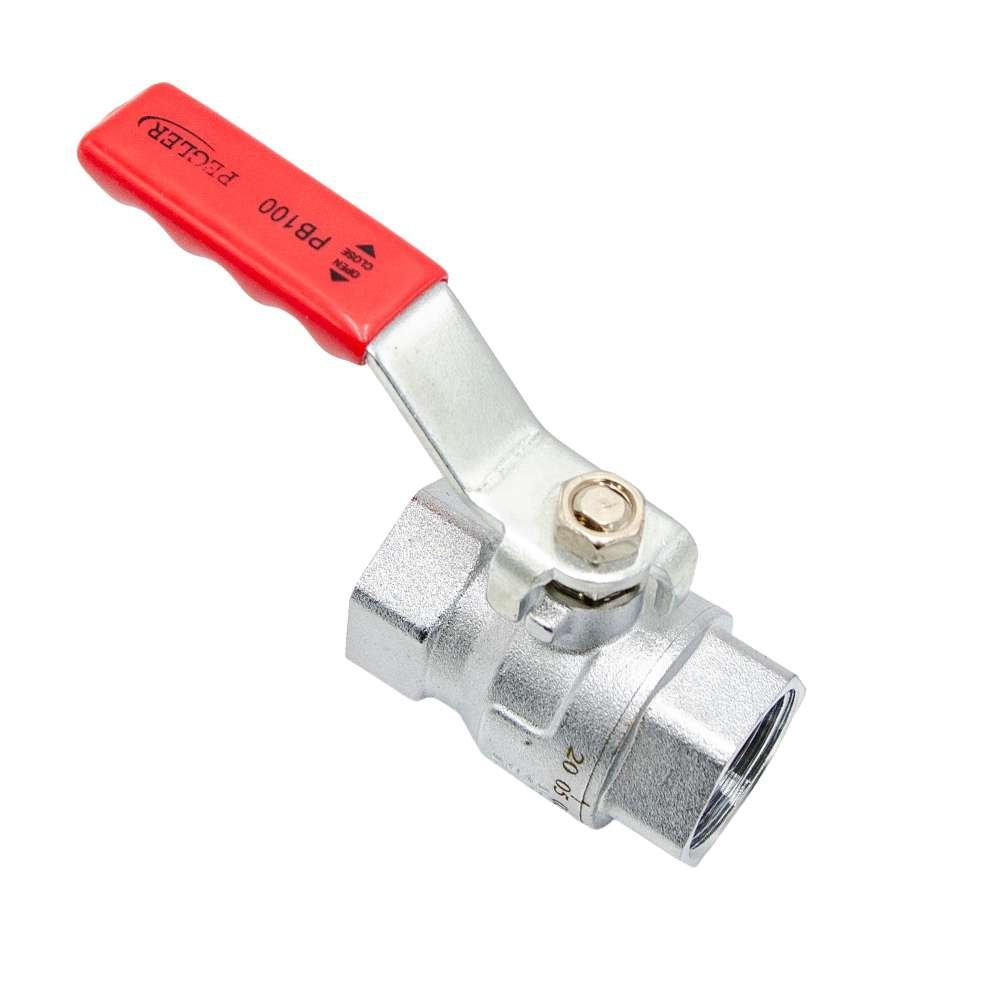

1 x 1-Inch Full Bore Brass Ball Valve with Red Lever Handle
On-Site & Workshop Notes
-
Ensure threads are clean and apply high-quality PTFE tape or pipe dope to the male threads before assembly.
-
Avoid over-tightening the fitting onto the pipe to prevent stress fractures in the brass body.
-
The red lever handle provides a quick visual indicator; when the handle is perpendicular to the pipe, the flow is isolated.
-
This brass isolator is maintenance-free, though periodic cycling is recommended in hard water areas to prevent scale buildup.
