PPR Female Threaded Elbow

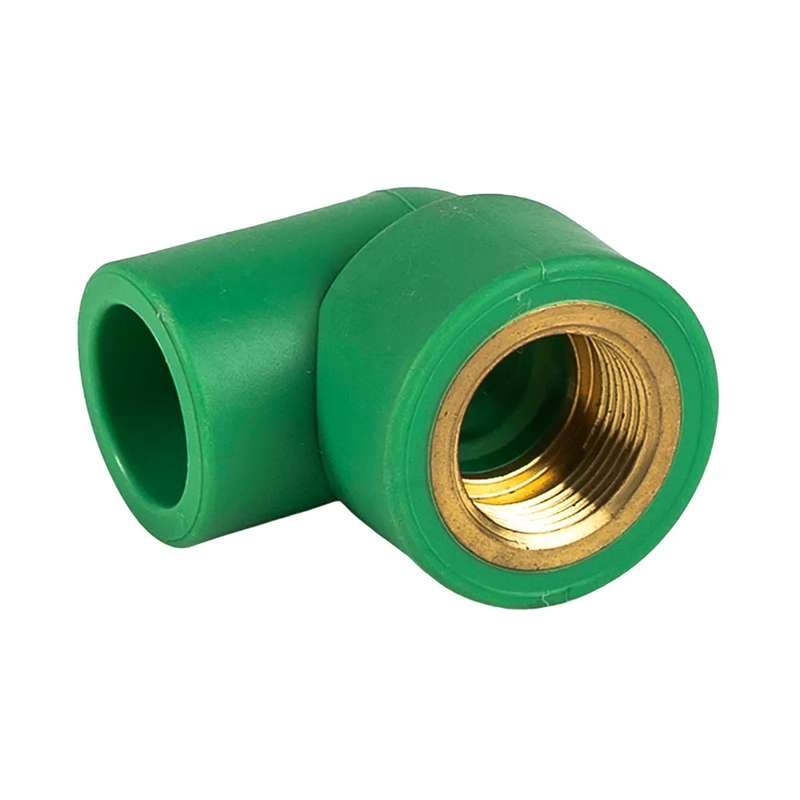

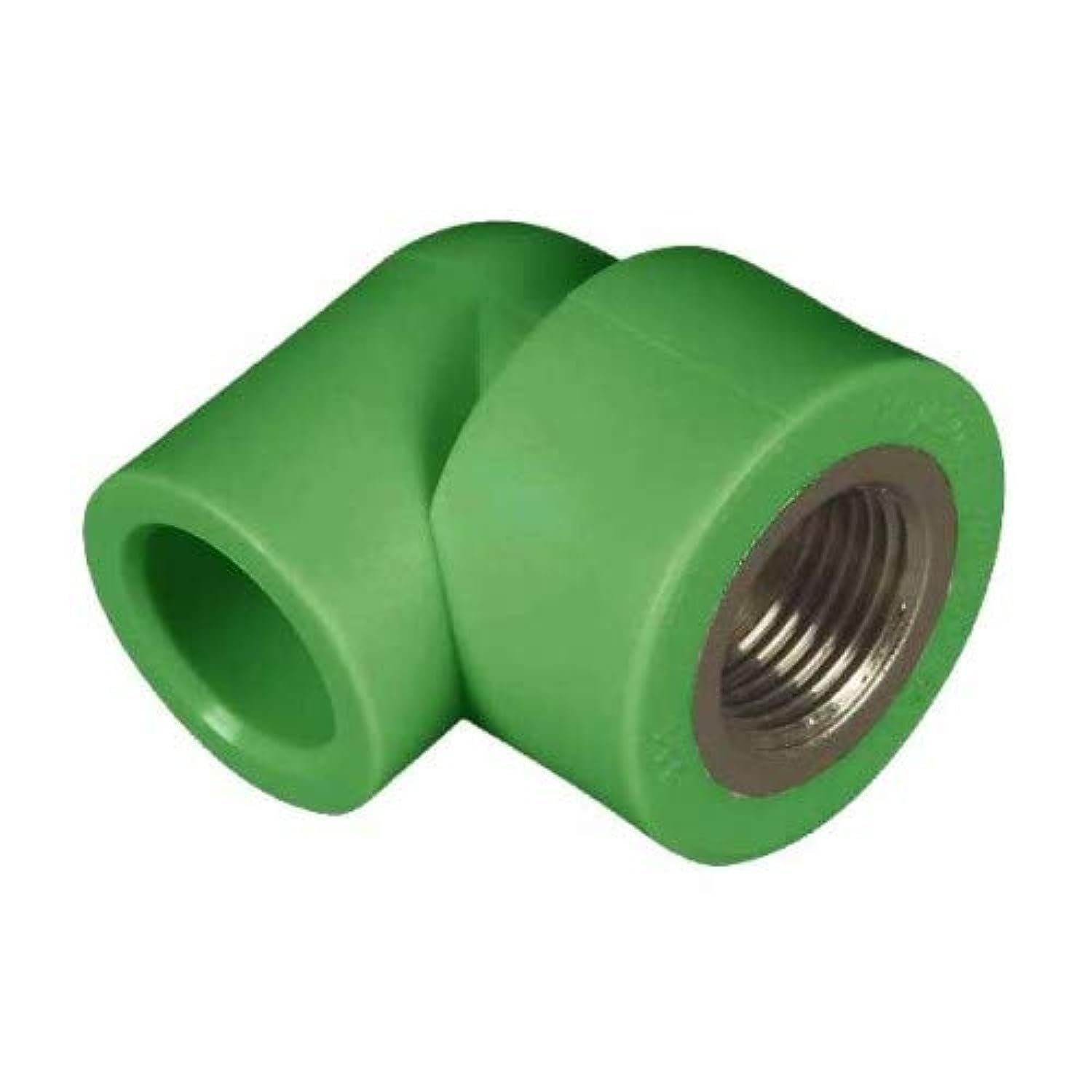

The PPR Female Adapter Elbow 20mm provides a high-pressure transition between PPR pipework and threaded metallic components or sanitary fixtures. This fitting integrates a precision-machined brass insert within a Polypropylene Random Copolymer body to ensure leak-proof connections in hot and cold water systems. It is engineered for socket fusion welding on the 20mm side while offering a standard 3/4-inch female thread for valves, taps, or flexible hoses.
Built for the Job
Plumbers utilize this fitting when terminating a PPR line at a wall point or connecting to equipment that requires a threaded union. The heavy-duty brass insert resists cross-threading and withstands the torque applied during the installation of chrome-plated fixtures. Because the polymer body handles high thermal expansion, the joint remains stable even in fluctuating temperature environments common in residential and commercial plumbing stacks.
-
Wall-mounted shower mixer installations
-
Connecting PPR risers to threaded brass gate valves
-
Transitioning from plastic mains to metallic pump manifolds
Product Highlights
- High-Grade Brass Insert
-
The internal 3/4-inch thread features corrosion-resistant brass that prevents rust buildup and ensures a smooth seal with PTFE tape or thread sealant.
- PN25 Pressure Rating
-
- Supports working pressures up to 25 Bar
- Suitable for high-head pump applications
- Thermal Stability
-
This component maintains structural integrity at temperatures up to 95 degrees Celsius for hot water distribution.
Technical Specifications
| Specification | Detail |
|---|---|
| Pipe Connection Size | 20 mm (Socket Fusion) |
| Thread Size | 3/4 Inch (Female BSP) |
| Material | PPR (Polypropylene Random Copolymer) |
| Insert Material | Nickel-Plated Brass |
| Pressure Rating | PN25 |
| Standard Compliance | DIN 8077/8078 |
| Color | Green / White (Typical) |
What’s Included
-
1 x PPR Female Adapter Elbow 20mm x 3/4″
On-Site & Workshop Notes
-
Ensure the heating tool is set to 260°C before attempting the socket fusion weld on the 20mm port. Do not over-rotate the fitting once the pipe is inserted to avoid weakening the bond. When tightening threaded metallic accessories into the brass insert, use a spanner on the hexagonal molded section of the fitting to prevent stress on the plastic-to-metal bond. Always perform a pressure test before closing wall cavities or screeding over the installation.
