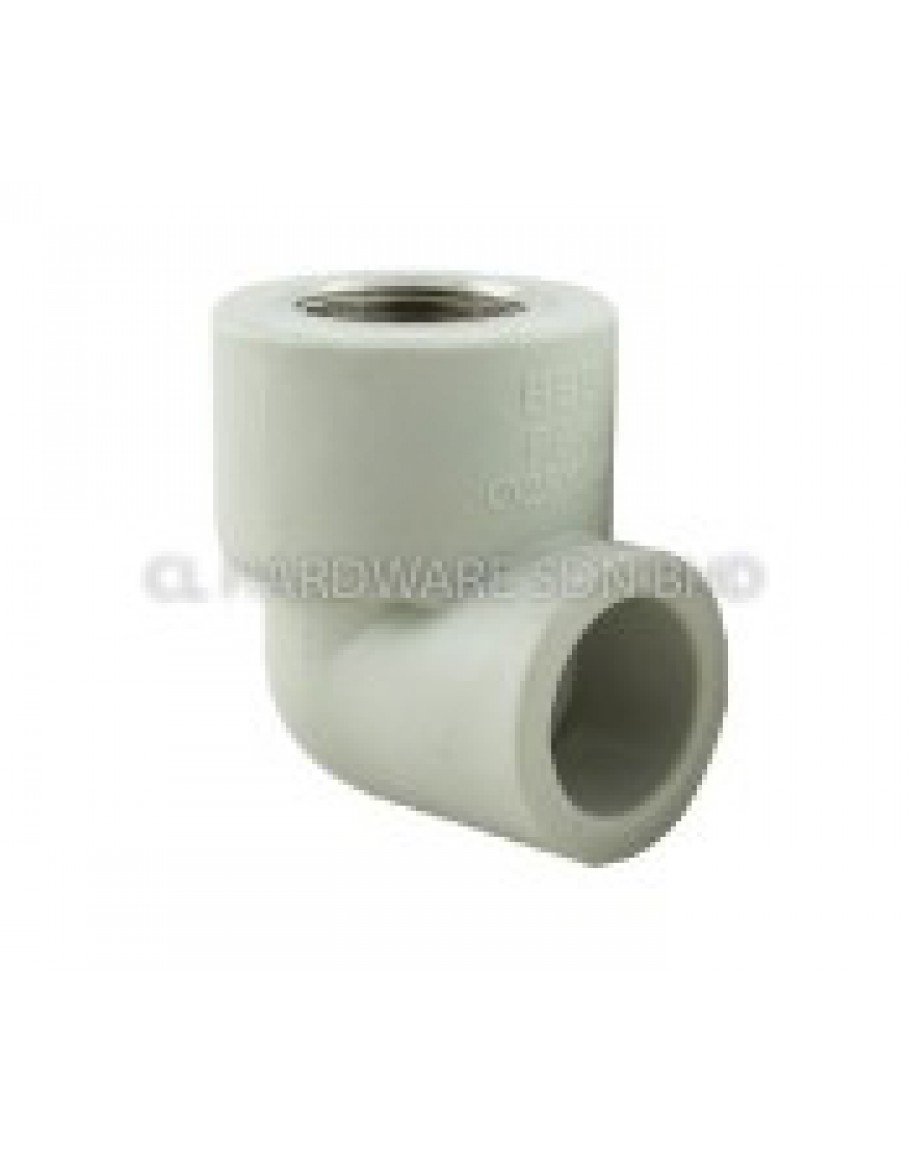

20mm x 1″ PPR Female Elbow
The PPR Female Adapter Elbow facilitates a high-strength 90-degree transition from standard 20mm socket-fusion piping to 1-inch male threaded hardware. This industrial-grade fitting utilizes Polypropylene Random Copolymer for superior thermal stability in pressurized water systems. It serves as a critical junction point where plastic lines must interface with metal valves, gauges, or pump housings.
Built for the Job
This component solves the common challenge of connecting small-bore 20mm distribution lines to larger 1-inch threaded accessories without requiring multiple reducers. The 90-degree geometry allows for tight routing in mechanical rooms, riser shafts, and under-sink installations. Plumbers rely on this specific configuration for creating robust manifold take-offs and equipment headers.
-
Connecting 20mm PPR main lines to 1-inch threaded pressure tanks or pumps.
-
Installing heavy-duty brass valves onto plastic piping networks.
-
Creating secure termination points for industrial wash-down hoses.
Product Highlights
- Reinforced Brass Insert
-
- The internal 1-inch thread features deep-seated brass to prevent cross-threading.
- External knurling on the metal core ensures a permanent bond with the plastic body.
- Thermal and Pressure Rating
-
This fitting maintains structural integrity at temperatures up to 95 degrees Celsius under PN25 pressure conditions.
- Chemical Neutrality
-
The PPR-C material prevents scale buildup and resists corrosion from common water treatment chemicals.
Technical Specifications
| Specification | Detail |
|---|---|
| Pipe Connection Size | 20mm (Socket Fusion) |
| Thread Connection Size | 1 Inch Female BSP |
| Pressure Rating | PN25 (2.5 MPa) |
| Material | PPR-C / Brass Insert |
| Standard Compliance | DIN 8077 / DIN 8078 |
What’s Included
-
1 x 20mm x 1 Inch PPR Female Threaded Adapter Elbow
On-Site & Workshop Notes
-
Ensure the socket fusion welder reaches the correct operating temperature before joining the 20mm pipe.
-
Apply professional-grade PTFE tape to the 1-inch female threads to guarantee a leak-proof seal with metal components.
-
Avoid over-tightening metal pipe nipples into the brass insert to prevent stress cracking in the surrounding polymer.
-
Store these connectors away from direct sunlight to maintain the long-term UV stability of the plastic housing.
