Standard Pentagon Shower Enclosure, 900 x 900 x 2000mm, 6mm Tempered Glass

900mm Pentagon Enclosure

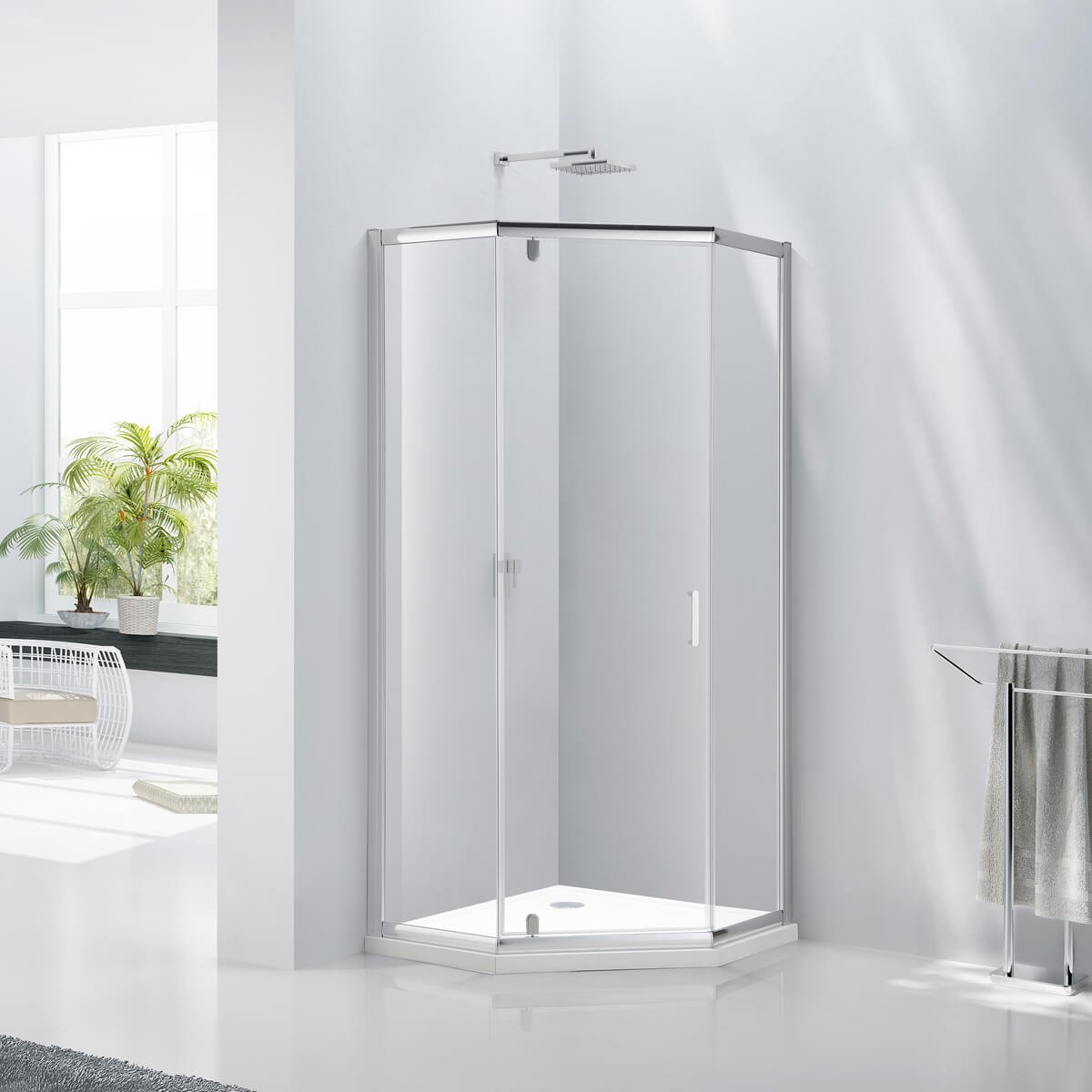

The Pentagon Shower Enclosure provides a space-efficient corner solution for modern bathrooms and commercial hospitality projects. This unit measures 900mm by 900mm with a standard 2000mm height. It utilizes high-impact tempered glass and reinforced aluminum profiles to ensure structural integrity in high-use environments. The neo-angle design allows for maximum floor space utilization without compromising the internal showering area.

Built for the Job

Contractors select this neo-angle configuration when bathroom floor space is at a premium. The three-sided glass front creates a walk-in feel without the large footprint of a standard square unit. Plumbed and leveled correctly, the system offers a permanent and leak-proof showering area. It fits standard 900mm pentagonal shower trays or installs directly onto finished tiled floors for a wet-room appearance. The pivot mechanism is designed for heavy daily use in residential or rental properties. Site supervisors prefer this model for its adjustable wall profiles that compensate for slightly uneven vertical surfaces.

• Corner installations in compact residential master bathrooms.

• Commercial hospitality upgrades requiring durable, low-maintenance glass.

• Modern wet-room conversions with direct-to-tile mounting requirements.

Product Highlights

Safety Glass Quality

The 6mm clear safety glass complies with international breakage standards to ensure user safety in wet environments.

Frame Construction

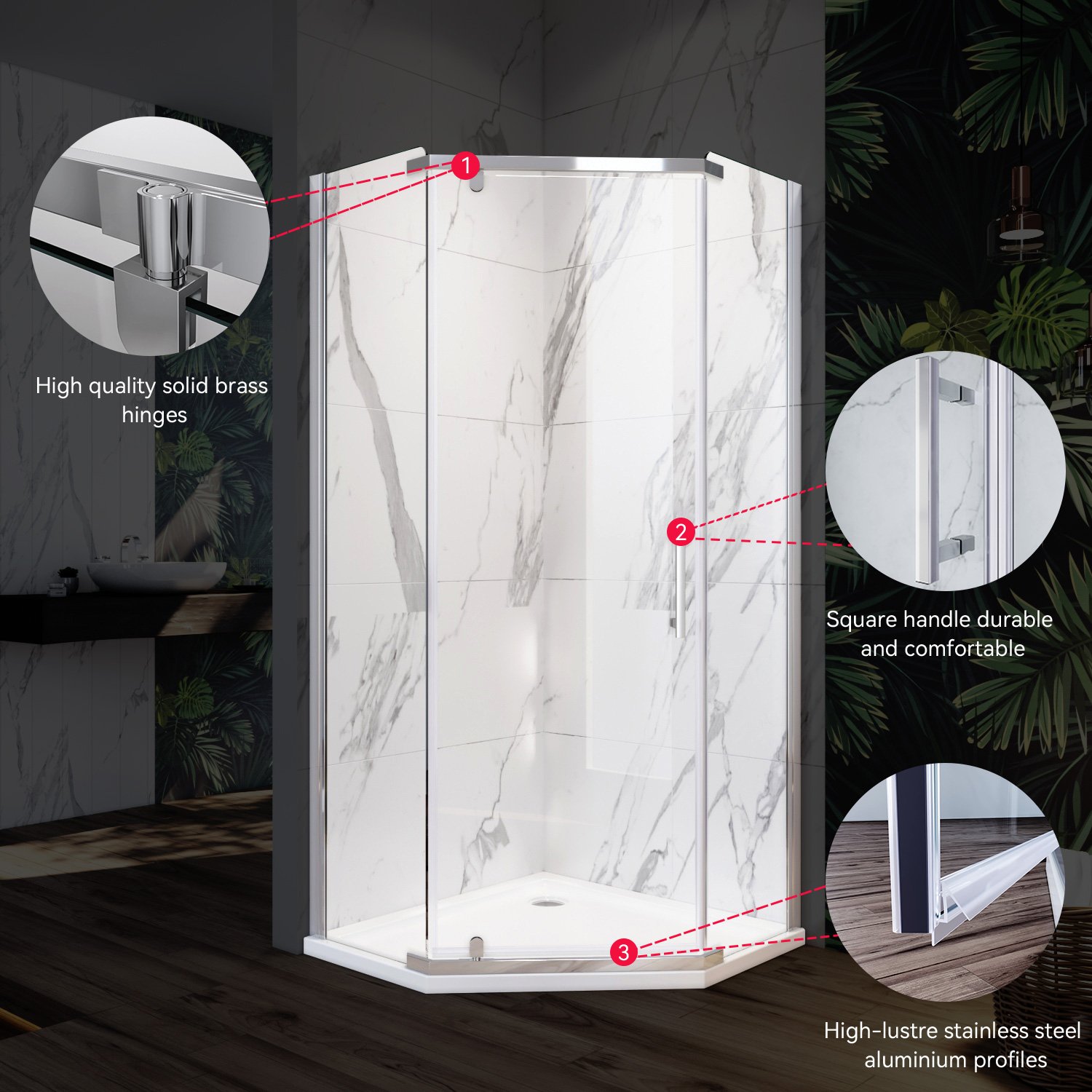

• Polished aluminum profiles offer high resistance to corrosion and oxidation.
• Adjustable wall channels provide up to 15mm of lateral movement for out-of-true walls.

Watertight Integrity

• Full-length magnetic gaskets ensure the door snaps shut to prevent external water leakage.
• Translucent PVC bottom seals divert water back toward the drainage point.

Technical Specifications

What’s Included

• 1 x Fixed Glass Panel Set

• 1 x Pivot Door Assembly

• 2 x Adjustable Wall Profiles

• 1 x Stainless Steel Handle Set

• Magnetic and Bottom Water Seals

• Installation Hardware Kit (Plugs and Screws)

On-Site & Workshop Notes

• Always verify the shower tray is perfectly level before mounting the vertical frame profiles.

• Apply a continuous bead of anti-fungal sanitary silicone only to the outside edges of the frame to allow internal drainage.

• Handle glass panels with care; avoid contact between the corners of the tempered glass and hard tiled surfaces.

• Ensure wall fixings are secured into solid masonry or appropriate stud reinforcements for long-term stability.
