Galvanized Chain Link Fence
The 16-Gauge Galvanized Chain Link fence provides a robust barrier for perimeter security and site demarcation. This heavy-duty wire mesh utilizes a triple-twisted selvage design to ensure the fabric remains taut and resists sagging over long spans. It suits commercial boundaries, residential enclosures, and agricultural partitions where durability is a primary requirement.
Built for the Job
Contractors specify this fencing for high-traffic or exposed areas. The 16-gauge wire offers a balance between flexibility for installation and rigidity against impact. It serves as a reliable solution for securing vacant lots, protecting livestock, or creating internal warehouse partitions. The triple-twisted top and bottom edges prevent the wire from unravelling during the tensioning process, which is a common failure point in lighter-duty alternatives. This structural reinforcement ensures that the diamond mesh maintains its shape even when subjected to physical pressure or climbing attempts.
-
Perimeter security for residential properties and gated communities.
-
Internal partitioning in industrial facilities and warehouses.
-
Agricultural enclosures for livestock management and crop protection.
Product Highlights
- Corrosion Protection
-
The hot-dipped galvanization process applies a thick zinc coating to protect the steel core from oxidation.
- Structural Integrity
-

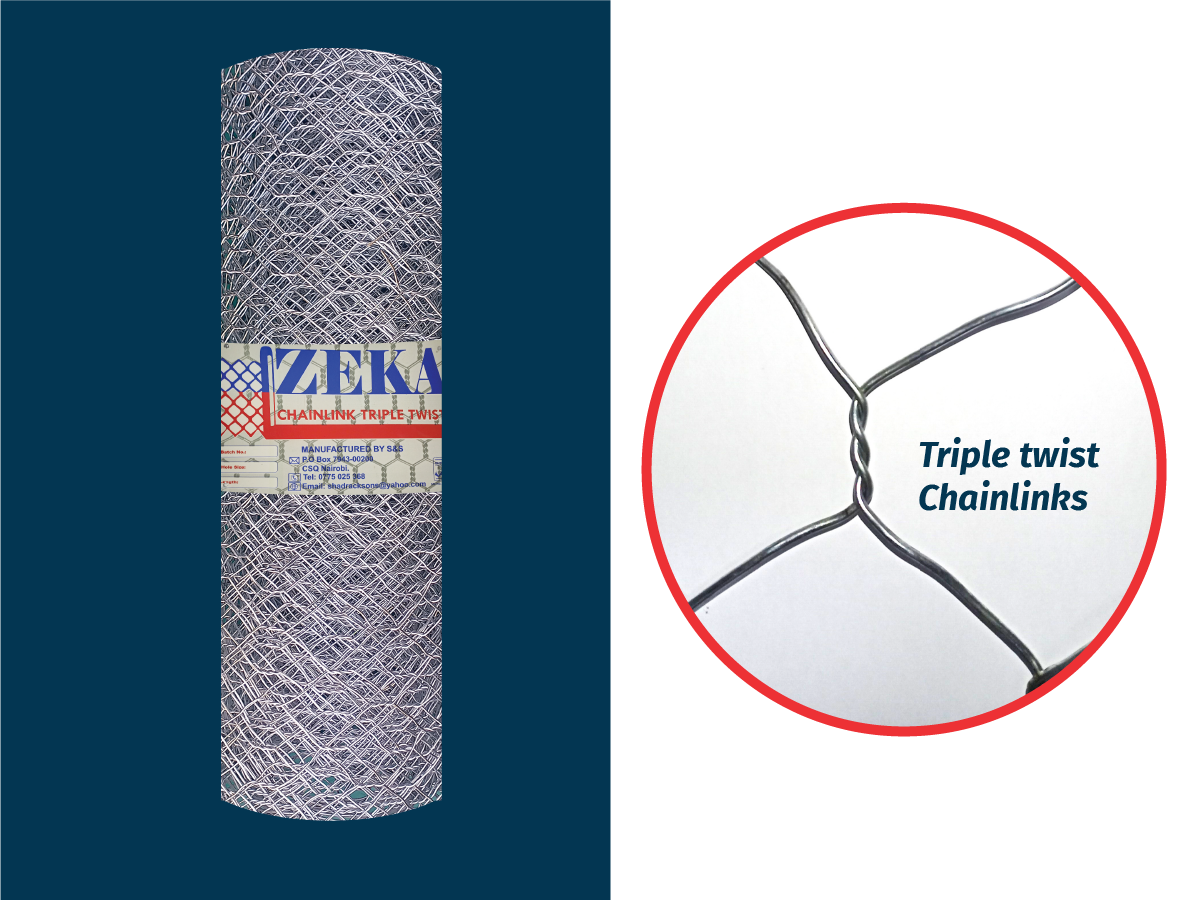

- Triple-twisted selvage prevents wire separation at the edges.
- 16-gauge wire thickness provides superior tensile strength compared to standard 18-gauge mesh.
Technical Specifications
| Specification | Detail |
|---|---|
| Wire Diameter | 16-Gauge (1.6mm) |
| Roll Height | 1.2 Meters (4ft) |
| Roll Length | 18 Meters |
| Material | Hot-Dipped Galvanized Steel |
| Mesh Type | Diamond Weave |
| Edge Finish | Triple Twisted |
What’s Included
-
1 x 18-Meter Roll of Galvanized Mesh
On-Site & Workshop Notes
-
Ensure intermediate posts are spaced at 3-meter intervals to maintain optimal tension across the 18-meter run.
-
Use high-tensile straining wire at the top, middle, and bottom to prevent the mesh from sagging over time.
-
This material can be cut to size using heavy-duty wire cutters or a grinder with a metal cutting disc.
-
Store rolls upright in a dry area to prevent white rust formation before installation on the project site.
