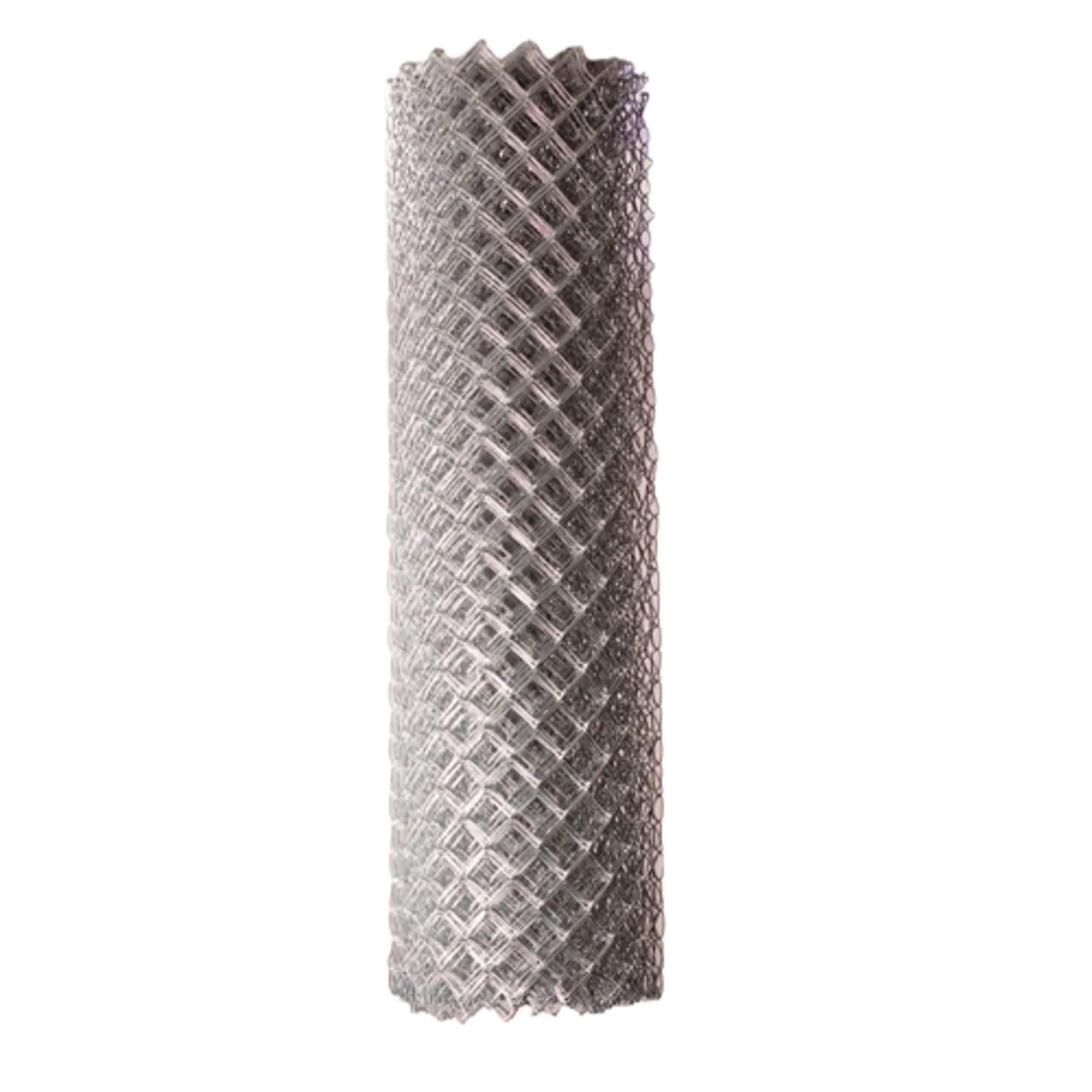

16-Gauge Galvanized Fencing
The Heavy Gauge Galvanized Fence provides a high-security perimeter solution for industrial, commercial, and large-scale residential sites. This 16-gauge wire mesh features a hot-dipped zinc coating to resist atmospheric corrosion. The 8ft height makes it suitable for high-clearance security requirements where standard fencing falls short.
Built for the Job
Contractors use this heavy-duty mesh for securing construction sites, warehouse yards, and agricultural boundaries. The 1.6mm wire diameter offers a balance between flexibility for installation and the tensile strength required to withstand impact. The 18m roll length allows for efficient coverage of long perimeter runs with fewer joints between sections.
-
Securing high-risk industrial perimeters and storage yards.
-
Establishing boundary lines for schools and public facilities.
-
Creating secure enclosures for livestock or large equipment.
Product Highlights
- Triple Twisted Selvage
-
The top and bottom edges feature a triple-twist finish to prevent the mesh from unravelling under tension or during cutting.
- Hot-Dipped Galvanization
-
- Uniform zinc coating protects against rust in high-humidity areas.
- Industrial-grade finish ensures a long service life in outdoor exposures.
- Resists abrasion during handling and installation on rocky terrain.
Technical Specifications
| Specification | Detail |
|---|---|
| Wire Gauge | 16 SWG (approx. 1.6mm) |
| Roll Height | 2.4 Meters (8 Feet) |
| Roll Length | 18 Meters |
| Finish | Hot-Dipped Galvanized Steel |
| Edge Type | Triple Twisted / Knuckled |
| Mesh Aperture | Standard Diamond Pattern |
What’s Included
-
1 x 18m Roll of 16-Gauge Galvanized Wire Mesh (8ft High)
On-Site & Workshop Notes
-
Ensure corner posts are set in concrete to a minimum depth of 600mm to support the 8ft height tension.
-
Use 12-gauge straining wires at the top, middle, and bottom to prevent the mesh from sagging over time.
-
Overlap adjacent rolls by at least one diamond pattern and secure with galvanized tying wire for a seamless join.
-
Wear heavy-duty leather gloves during handling to protect against sharp selvage edges.
-
Store rolls upright on a dry surface to prevent bottom-edge damage before deployment.
