16-Gauge Galvanized Chain Link
The 16-Gauge Galvanized Chain Link provides a high-tensile security barrier designed for perimeter protection in residential, commercial, and agricultural environments. This specific mesh utilizes a heavy-duty zinc coating to withstand oxidation in high-humidity regions. The 2.1-meter height ensures a significant physical deterrent against unauthorized access on site.
Built for the Job
Contractors specify this fencing material for projects requiring a balance between visibility and structural integrity. The 1.6mm wire diameter offers sufficient rigidity to maintain its shape under tension without excessive sagging over long spans. It is commonly deployed for boundary demarcation where medium-level security is necessary. The triple twisted selvage finish prevents the mesh from unraveling if a single strand is cut, making it a preferred choice for high-traffic industrial zones.
-
Security fencing for construction sites and equipment yards.
-
Perimeter wall extensions to increase the effective height of masonry boundaries.
-
Agricultural enclosures for livestock management and crop protection.
Product Highlights
- Corrosion Resistance
-
The hot-dipped galvanization process applies a thick zinc layer that protects the steel core from rust and environmental degradation.

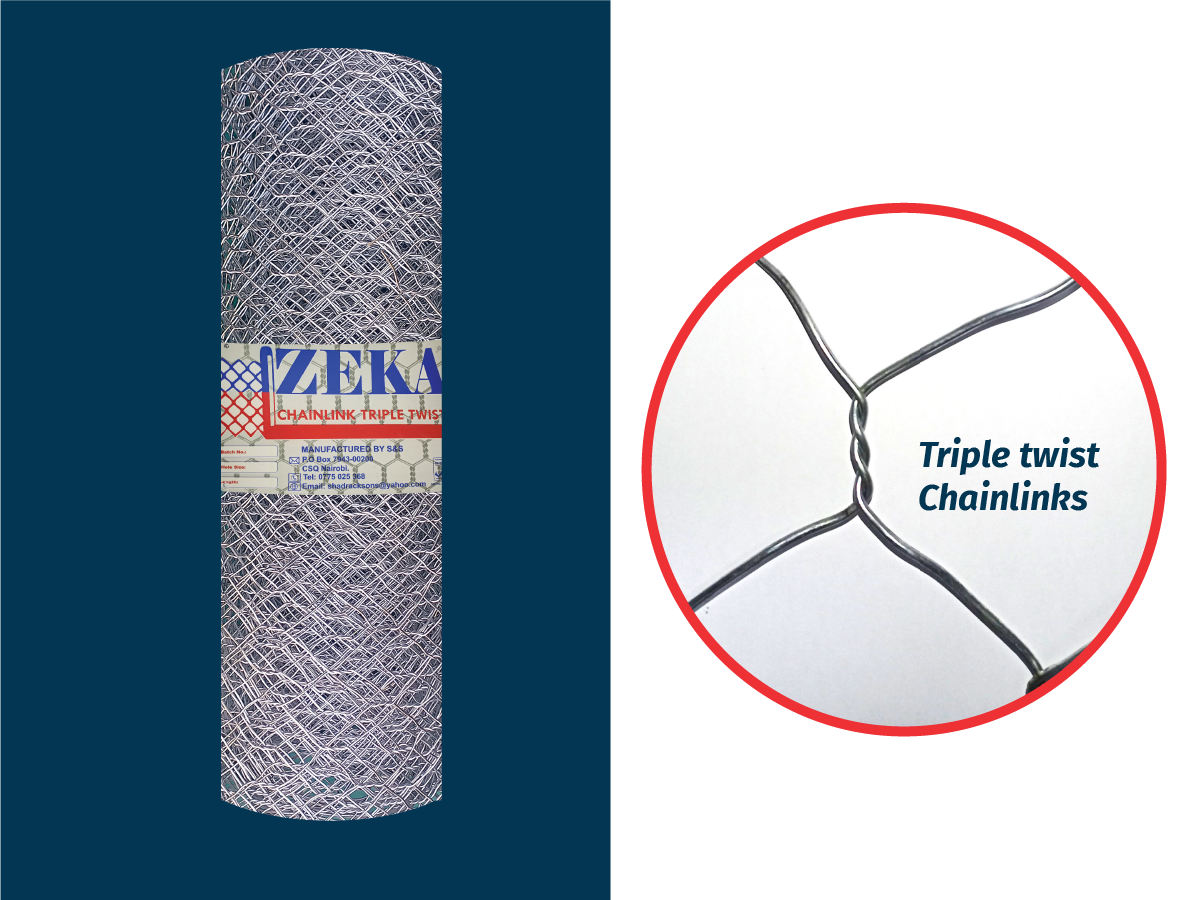

- Triple Twisted Selvage
-
- Reinforced top and bottom edges prevent snagging during installation.
- Increases the difficulty of manual tampering or forced entry.
Technical Specifications
| Specification | Detail |
|---|---|
| Wire Gauge | 16-Gauge (1.6mm) |
| Roll Height | 2.1 Meters (7 Feet) |
| Roll Length | 18 Meters |
| Finish | Hot-Dipped Galvanized |
What’s Included
-
1 x 18-Meter Roll of 16-Gauge Galvanized Mesh
On-Site & Workshop Notes
-
Ensure the support posts are spaced no more than 3 meters apart to maintain optimal tension across the 18-meter run.
-
Use 12-gauge or 10-gauge straining wire at the top, middle, and bottom to prevent the mesh from bowing over time.
-
Store rolls upright on a dry surface to avoid compression damage or localized moisture buildup before deployment.
-
Wear heavy-duty leather gloves during handling to protect against the sharp points of the twisted selvage.
