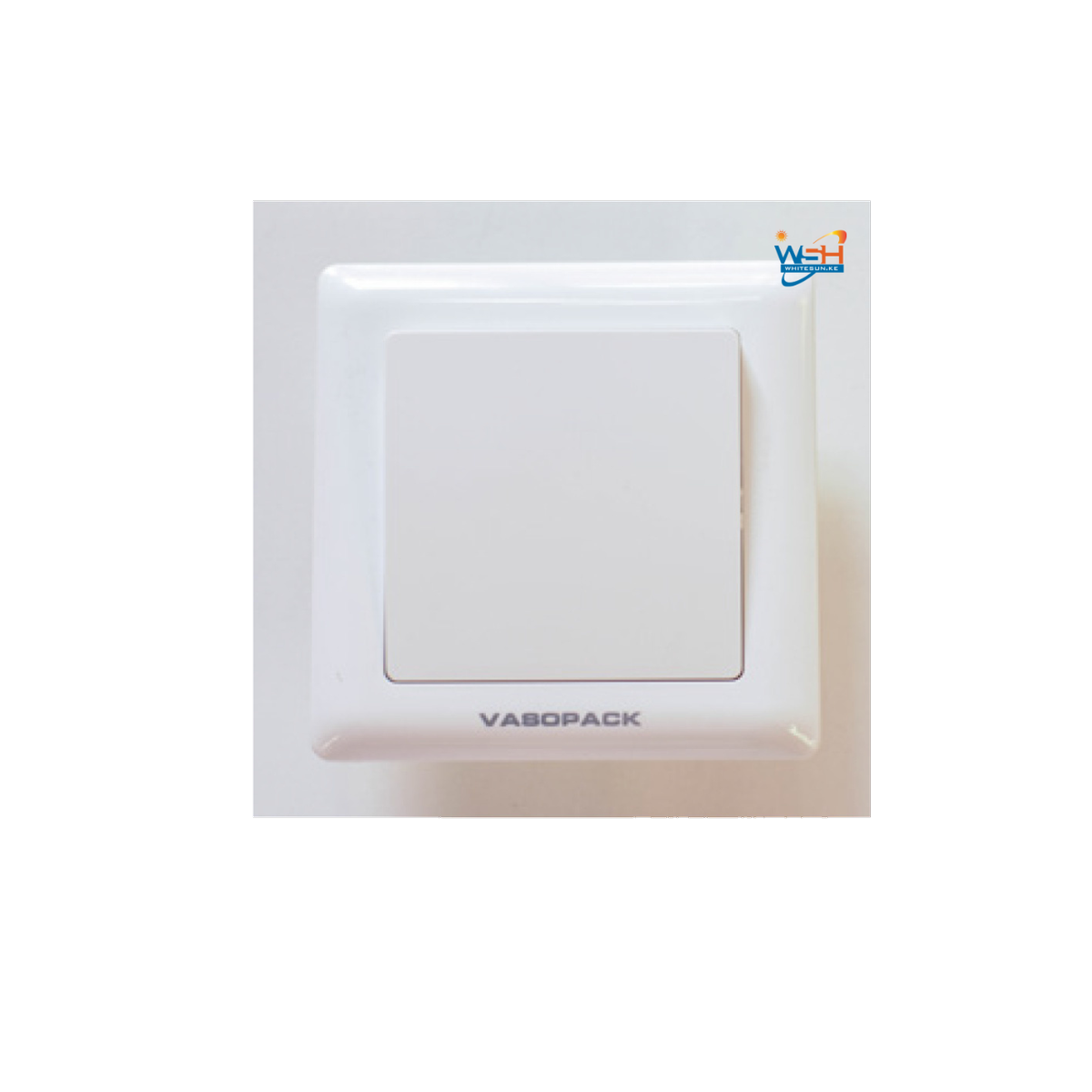

Vasopack SVA 1 Gang Switch
The Vasopack 1 Gang Switch provides high-reliability lighting control for 250V AC electrical circuits in commercial and residential infrastructure. This SVA series device supports two-way circuit integration, allowing users to manage power from multiple entry points in corridors or large rooms. The modular construction fits standard 86mm square wall plates and utilizes flame-retardant thermoplastic to ensure safety in high-traffic environments. Each unit features a rocker mechanism designed for consistent tactile response and long-term mechanical durability under heavy daily usage.
Key Features
-
Polycarbonate Housing
The UV-stabilized thermoplastic material resists yellowing over time and provides high impact resistance for demanding environments. -
Terminal Configuration
- Accepts up to three 1.5mm² or two 2.5mm² stranded copper cables.
- Captive terminal screws prevent loss during high-volume installation projects.
- Clear rear-molded markings identify Common, L1, and L2 ports for rapid wiring.
-
Silver Alloy Contacts
Internal switching mechanisms utilize silver alloy contact points to minimize electrical arcing and extend the operational lifespan of the component. -
Inductive Load Handling
The 10AX rating signifies the unit can handle the high inrush currents typical of modern LED drivers and fluorescent lighting ballasts. However, installers should verify total circuit wattage does not exceed the maximum rated current for safety compliance. -
Installation Architecture
- Standard 60.3mm mounting centers for universal back box compatibility.
- Front plate design conceals metal fixing screws for a clean finish.
- Low-profile rear housing allows for maximum wiring space inside standard 25mm deep boxes.
Specifications
| Feature | Specification |
|---|---|
| Brand | Vasopack |
| Series | SVA Series |
| Switch Type | 1 Gang 2 Way |
| Current Rating | 10AX |
| Voltage Rating | 250V AC |
| Standard | BS EN 60669-1 |
| Material | Flame Retardant Polycarbonate |
| Mounting Type | Flush / Wall Mounted |
| Fixing Centers | 60.3mm |
| Carton Quantity | 100 Units |
What’s in the Box
-
1 x Vasopack SVA 1 Gang 2 Way Switch
-
2 x M3.5 Mounting Screws
-
2 x Screw Cover Caps
Why Choose Vasopack SVA Switch
-
The SVA range utilizes high-density urea or polycarbonate to provide superior flame retardant properties in electrical enclosures.
-
Additionally, professional installers benefit from the large terminal apertures that simplify multi-cable looping in complex lighting grids.
-
The mechanical toggle provides distinct tactile feedback during operation to ensure the user identifies the switch state change.
-
Every unit undergoes rigorous factory testing for insulation resistance and dielectric strength to meet international safety protocols.
-
Standardized dimensions ensure full compatibility with existing mounting infrastructure during large-scale retrofitting projects.
