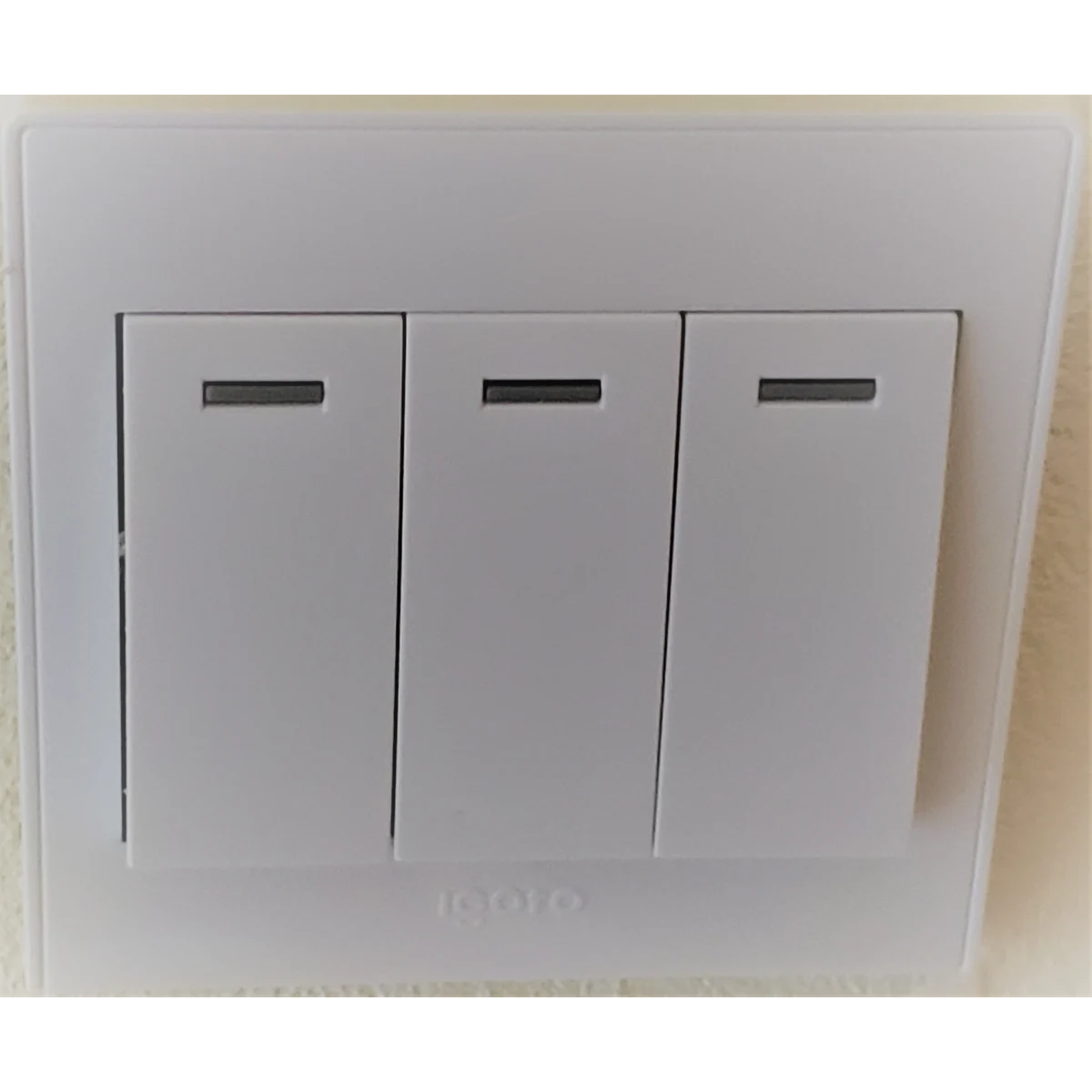

Vasopack SVA 3 Gang Switch
The Vasopack 3 Gang Switch provides a centralized interface for controlling three independent electrical circuits from a single wall point. This SVA series component supports two-way switching architecture. It allows electrical engineers to design lighting systems where loads are operated from multiple locations. The unit functions effectively in both commercial and residential infrastructure. It integrates seamlessly into standard 86mm square mounting boxes. Each rocker mechanism undergoes rigorous testing to ensure durability over thousands of operations.
Material construction focuses on long-term structural integrity and safety. The faceplate consists of high-grade polycarbonate. This thermoplastic polymer offers high impact resistance and thermal stability. It resists yellowing when exposed to ultraviolet light in sunlit environments. The internal switch housing utilizes flame-retardant materials to minimize fire hazards. These properties ensure the device maintains its aesthetic and functional standards throughout its service life.
The electrical contacts use a silver-nickel alloy to optimize conductivity and reduce wear. This choice of material prevents contact welding during high inrush current scenarios common with modern LED drivers. The 10AX rating signifies the switch can handle inductive loads without premature failure. Terminal blocks feature solid brass construction for maximum torque retention. They accommodate multiple wire gauges, facilitating flexible installation in various wiring topologies. Clear terminal markings on the rear housing assist technicians during the wiring process. This reduces installation errors and improves site efficiency.
Key Features
-
Triple Rocker Configuration
Three independent switches on a single plate allow for consolidated control of distinct lighting zones. -
Two-Way Switching Logic
Internal circuitry supports multi-point control systems for hallways, staircases, or large open-plan office layouts. -
Advanced Terminal Design
- Large capacity brass terminals for secure cable clamping
- Compatibility with 1.5mm² and 2.5mm² electrical conductors
- Captive terminal screws to prevent component loss during installation
-
10AX Inductive Rating
Engineered to manage the high surge currents associated with fluorescent ballasts and LED lighting arrays.
Specifications
| Feature | Specification |
|---|---|
| Model Number | SW-SVA3G2WS |
| Current Rating | 10AX (Inductive) |
| Voltage Rating | 250V AC, 50/60Hz |
| Gang Count | 3 Gang |
| Switch Type | 2-Way (SPDT) |
| Material | Polycarbonate (PC) |
| Dimensions | 86mm x 86mm x 30mm |
| Compliance | BS EN 60669-1 |
| Mounting Type | Flush Mount / Surface Mount Box |
What’s in the Box
-
Vasopack SVA 3 Gang 2 Way Switch Unit
-
Two M3.5 fixing screws
-
Screw cover caps for aesthetic finish
Why Choose SVA 3 Gang
-
High-grade silver-nickel alloy contacts ensure reliable circuit engagement and extended mechanical lifespan.
-
UV-stabilized polycarbonate housing prevents discoloration and maintains structural integrity in varying temperatures.
-
Standardized mounting dimensions ensure compatibility with existing electrical backboxes for rapid retrofitting.
Samuel Njuguna (verified owner) –
Using this for the main sitting room to control the balcony, corridor, and main lights from one point. The 10AX rating is more than enough for the LED panels we installed. It’s a decent budget-friendly option if you don’t want to spend too much on the premium brands.
Josphat Mwangi (verified owner) –
Installed these for a client’s project in Kilimani. The 2-way function is very responsive and having 3 gangs on one plate really saves on wall space. The white finish is clean and matches the standard trunking perfectly. Good quality for the SVA range.
Beatrice Wambui (verified owner) –
It is okay for the price. The plastic feels a bit light compared to the more expensive series, and the screws provided were a bit short for my deep mounting box so I had to use my own. However, the switch itself works perfectly fine for the guest wing.
Linda Atieno (verified owner) –
Fair price for a 3-gang switch. I bought several for my rental units in Kahawa. They look neat and the ‘click’ feels firm, not flimsy like some cheap brands you find downtown. Trustedbuilder delivered to my site the next day.
Peter Omondi (verified owner) –
Needed a genuine 3-gang 2-way for the master bedroom to control lights from the door and the bedside. This Vasopack unit is solid and the white color doesn’t look like it will yellow quickly. Very happy with the quick service and the product quality.
Kevin Omari (verified owner) –
Simple and effective. No issues with the terminals during wiring.
