Malpha Hydraulic Soft-Close Hinges, 35mm Cup, Full Overlay Steel

Malpha Hydraulic Hinges

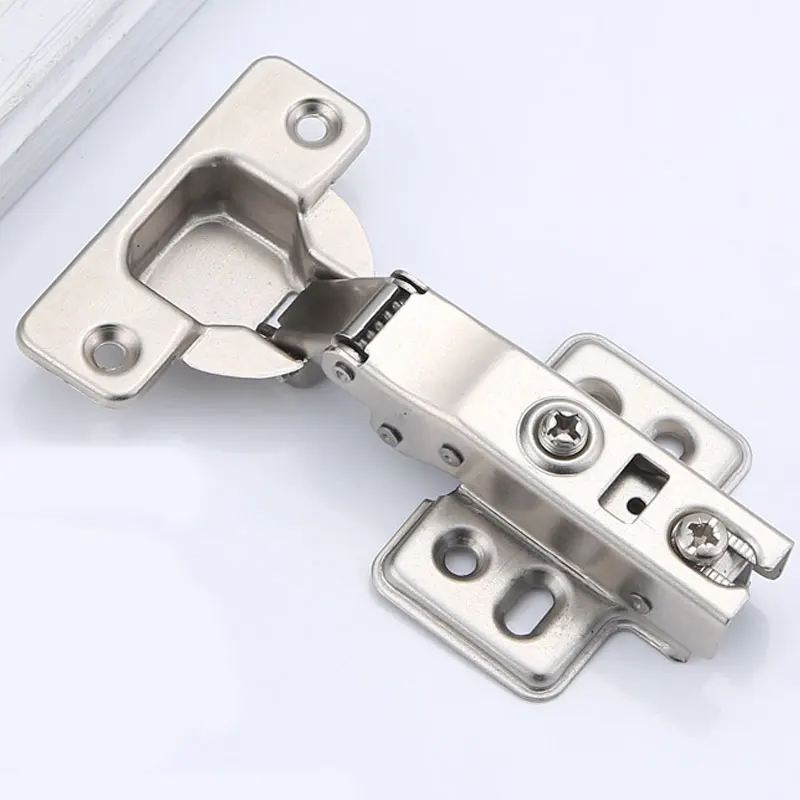

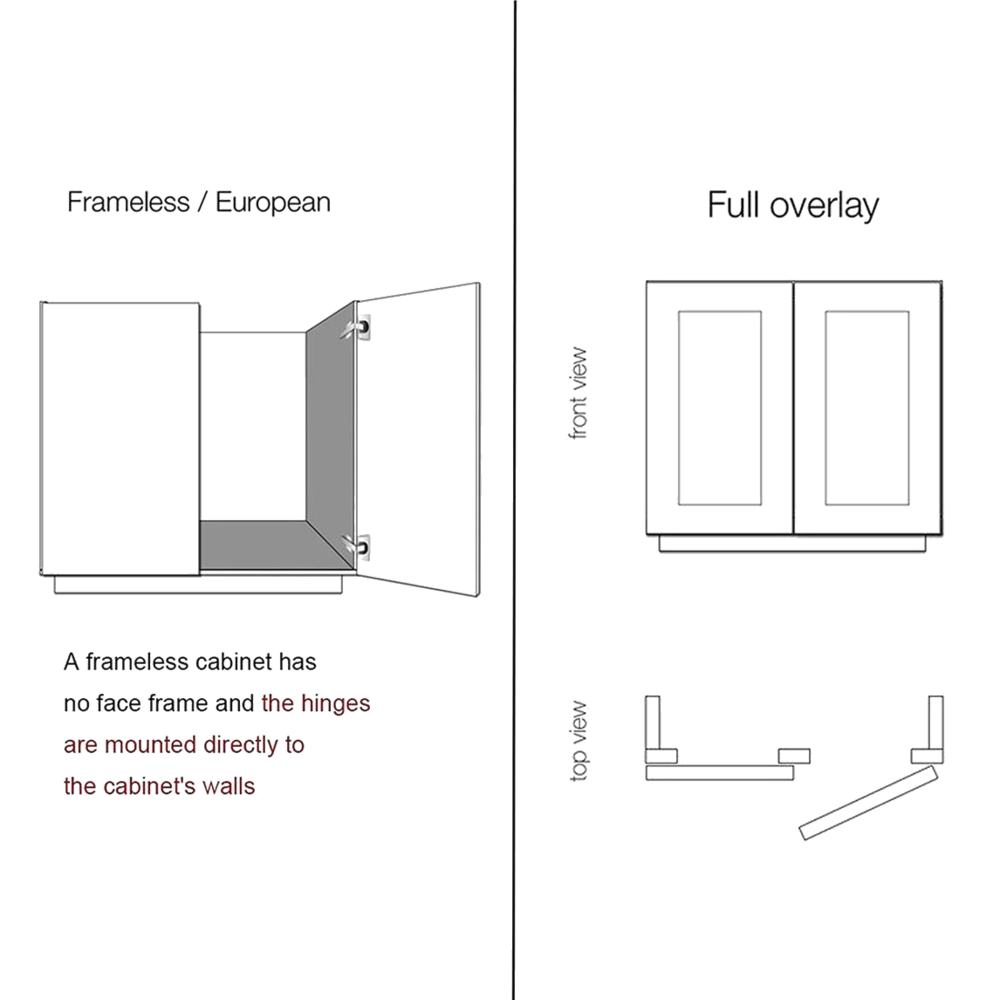

The Malpha Hydraulic Soft-Close Hinges provide a professional-grade solution for cabinetry and furniture installations requiring controlled, silent closing movement. These concealed hardware components utilize an integrated hydraulic piston to prevent door slamming, which protects both the cabinet carcass and the door panels from impact damage over long-term use. These fittings are engineered for full overlay applications on standard 18mm to 22mm board thicknesses.

Built for the Job

Carpenters and kitchen fitters utilize these components in high-traffic environments where durability and noise reduction are priorities. The hydraulic mechanism remains effective even under heavy daily cycles, making them suitable for commercial office storage, residential kitchen units, and bedroom wardrobes. The standard cup size ensures compatibility with most automated boring machines and manual jigs used on the job site.

• Installation of full-overlay kitchen cabinet doors.

• Fitting soft-close mechanisms to commercial office storage units.

• Retrofitting older furniture to improve door closing performance.

Product Highlights

Silent Closing Mechanism

The internal hydraulic dampener controls the final 20 degrees of the closing arc to eliminate noise and vibration.

Three-Way Adjustability

• Lateral adjustment screw for precise door alignment.
• Depth adjustment for managing the gap between the door and the frame.
• Vertical adjustment via the mounting plate slots.

Technical Specifications

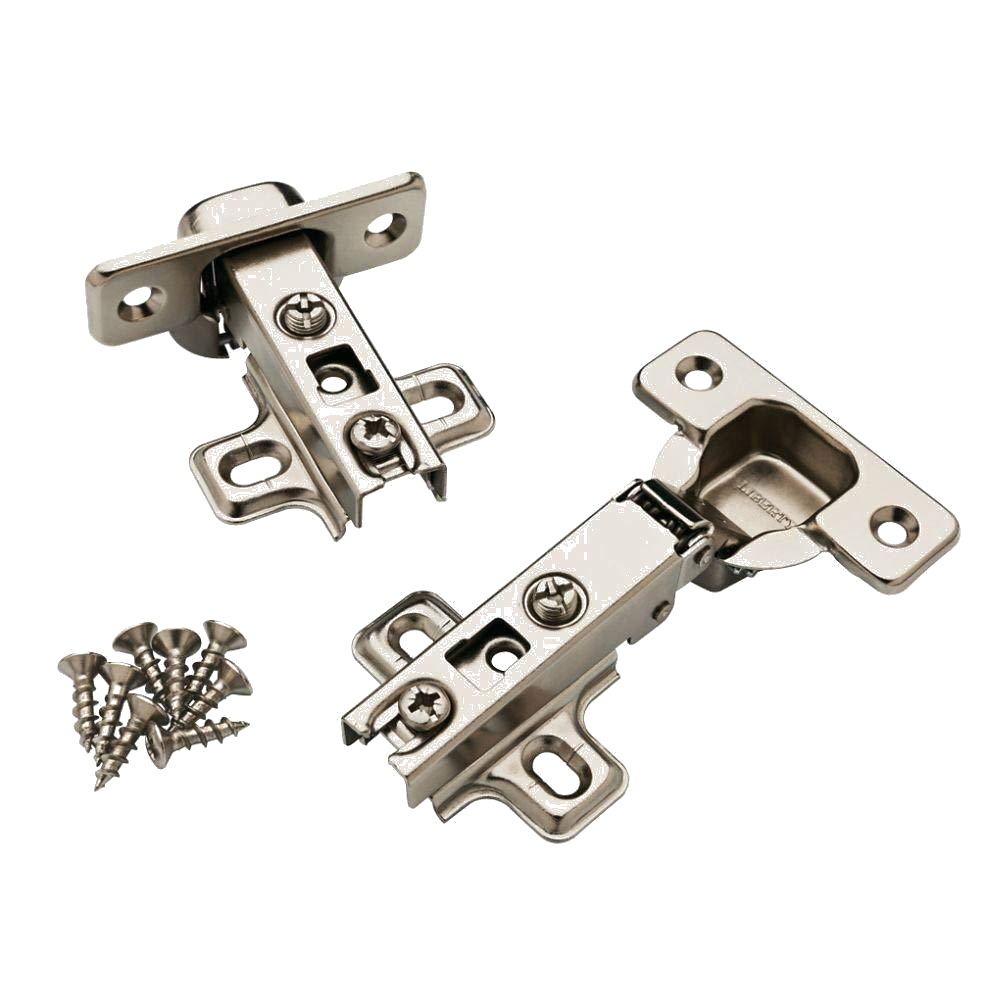

What’s Included

• 2 x Hydraulic Concealed Hinges

• 2 x Clip-on Mounting Plates

• Installation Screws

On-Site & Workshop Notes

• Ensure the 35mm cup hole is bored to a minimum depth of 11.5mm for proper seating of the hardware.

• The clip-on plate design allows for quick removal of doors during site delivery or painting without losing alignment settings.

• Regularly check the tension of the mounting screws in high-use applications to maintain the integrity of the soft-close action.

• Avoid using corrosive cleaning agents on the nickel-plated surface to prevent premature oxidation of the metal components.
