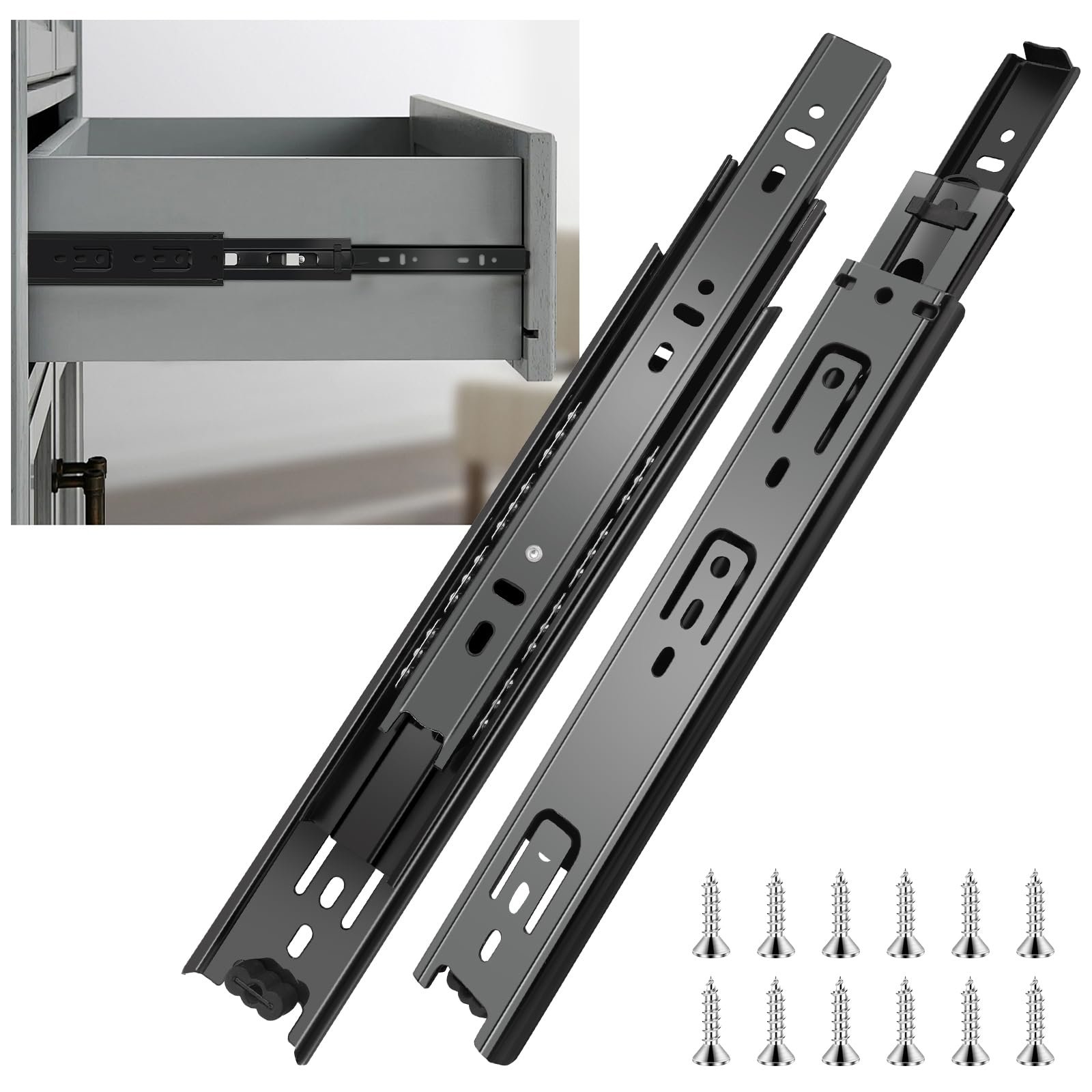

Romanys 14 Inch Runner Ball Bearing Side Mount

Romanys 14″ Ball Bearing Runner

The Romanys 14 Inch Runner Ball Bearing Side Mount provides a high-capacity solution for commercial and residential cabinetry. This 350mm hardware component utilizes precision-engineered steel balls to ensure consistent movement under load. It fits standard side-clearance gaps of 12.7mm and handles weights up to 45kg when properly installed.

Built for the Job

Contractors use these tracks for high-traffic storage units where reliability is non-negotiable. The cold-rolled steel construction resists deformation during heavy extension cycles. This hardware is a standard choice for kitchen installers and office furniture manufacturers who require a durable slide that maintains its alignment over years of use. The 32mm hole pattern ensures compatibility with automated boring machines and manual jig setups alike.

• Commercial office desk pedestals and filing units.

• Residential kitchen base cabinets and pantries.

• Workshop tool chests requiring high load-bearing capacity.

Product Highlights

Precision Movement

Internal ball bearing cages prevent metal-on-metal friction for a quiet operation throughout the life of the cabinet.

Full Extension Access

• Allows complete access to the rear of the drawer box for maximum storage efficiency.
• Integrated lever disconnect allows for rapid drawer removal during site installation or cleaning.
• Positive stop prevents the drawer from falling out when fully opened under weight.

Technical Specifications

What’s Included

• 1 x Pair of Romanys 350mm Ball Bearing Slides (Left and Right)

On-Site & Workshop Notes

• Ensure exactly 12.7mm (1/2 inch) clearance on each side of the drawer box to prevent the mechanism from binding.

• Use #6 or #8 pan head screws; countersunk screws may sit too high and obstruct the internal carriage movement.

• Check the cabinet carcass for squareness before final fastening, as any racking will cause the slides to feel rough or stick.

• The zinc plating provides basic corrosion resistance, but storage in high-humidity environments before installation should be avoided to protect the machined edges.
