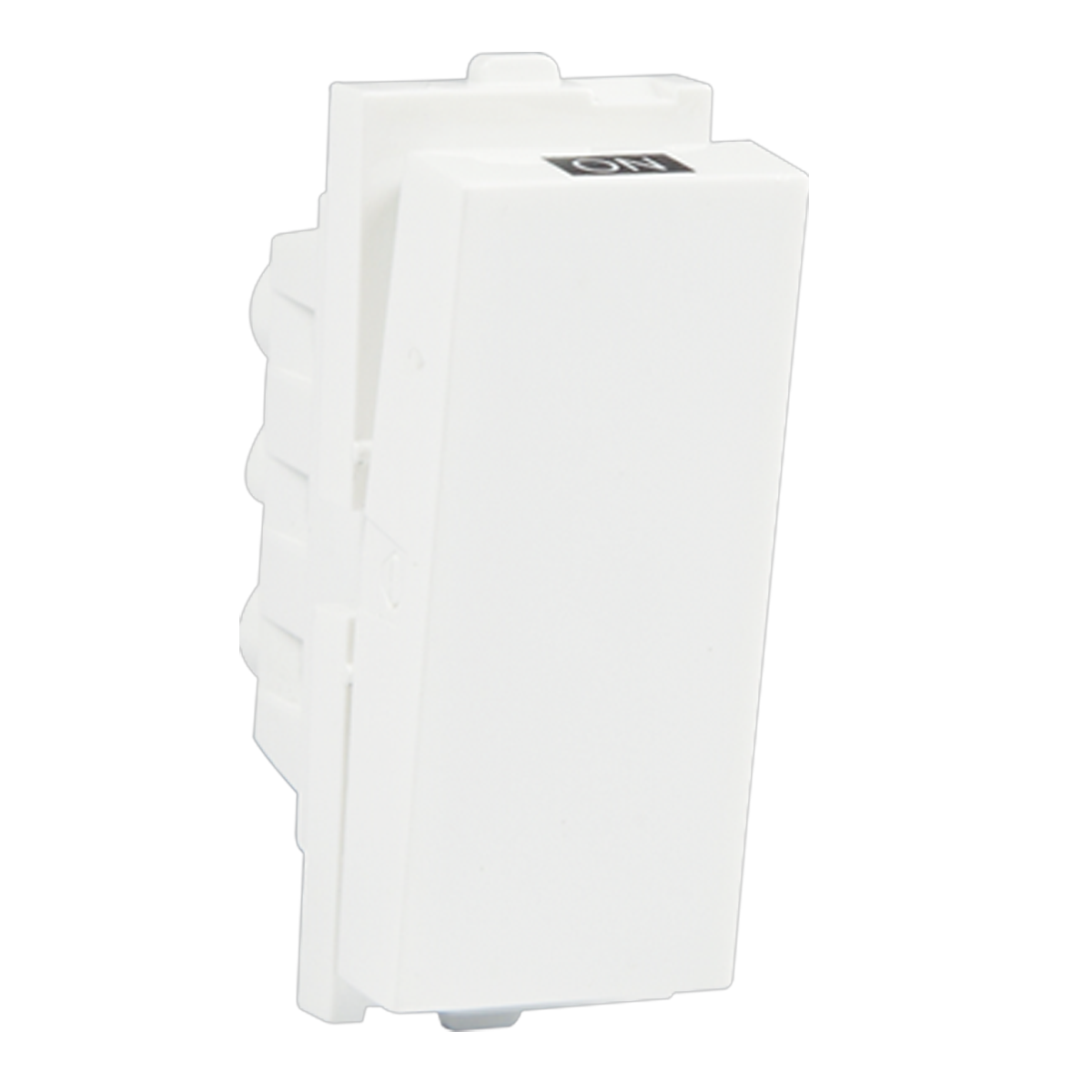

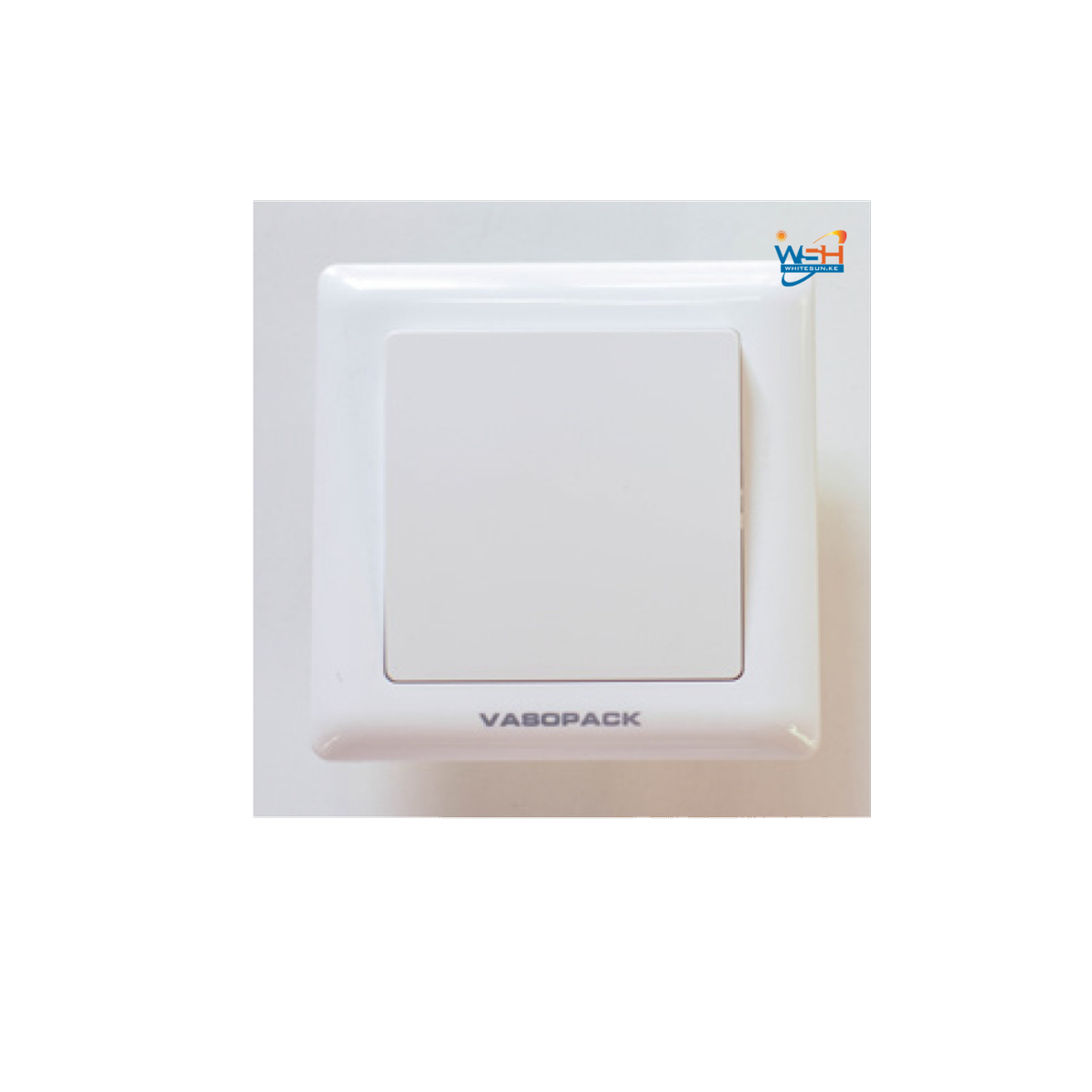

SVI 1 Gang Switch
The Vasopack SVI 1 Gang provides reliable single-pole control for residential and commercial lighting circuits. This 10AX rated unit manages single-circuit lighting loads with high reliability. It features silver alloy contact points to minimize arcing during operation. Engineers select this series for its robust internal bridge design. The mechanism ensures positive contact engagement across thousands of cycles.
The external casing utilizes high-impact polycarbonate. This material resists yellowing from UV exposure and provides flame retardancy. The front plate maintains a low profile against the mounting surface. It fits standard single-gang back boxes with 60.3mm centers. Terminal screws remain accessible from the top to simplify wiring in tight enclosures. Internally, the switch uses silver-nickel contact points. These materials reduce electrical resistance and heat buildup. The 1-way configuration controls one circuit from a single location. It supports standard lighting configurations using 1.5mm or 2.5mm conductors. The captive terminal screws prevent loss during high-volume installation projects.
This SVI series component meets international safety standards for low-voltage switchgear. It operates within a standard voltage range of 220V to 250V AC at 50/60Hz. The mechanical life exceeds 40,000 operations under full load conditions. Electrical engineers specify this unit for its predictable thermal performance. The design includes clear terminal markings on the rear housing. This reduces wiring errors during rapid deployment. Large terminal apertures accommodate multiple cables for loop-in systems. The switch rocker provides tactile feedback to the user during operation. It requires a specific actuation force to prevent accidental switching.
This hardware integrates into diverse architectural environments. The white finish matches standard electrical fittings in most commercial buildings. Each unit comes individually wrapped to prevent scuffing before final handover. Procurement managers benefit from the high-density carton packaging for logistical efficiency. The internal mechanism features a high-tension spring system. This ensures the rocker returns to a stable position without fluttering. The contact gap meets standard isolation requirements for safe maintenance. The switch housing includes reinforced mounting points. These prevent cracking when using power drivers for installation.
The SVI range undergoes rigorous testing for dielectric strength. It withstands voltage spikes common in industrial power grids. The non-conductive front plate ensures user safety in case of internal faults; consequently, the design minimizes electrical shock risks. The modular design allows for quick replacement during facility upgrades. This switch remains a staple for contractors requiring balance between cost and technical compliance.
Key Features
-
Load Handling
The 10AX rating supports both inductive lighting loads and standard resistive circuits. -
Material Composition
- High-impact polycarbonate housing resists mechanical stress.
- Flame retardant properties enhance building fire safety.
- UV stabilized finish prevents discoloration over long-term exposure.
-
Installation Efficiency
Top-facing terminal screws allow for rapid wiring in standard single-gang enclosures.
Specifications
| Feature | Specification |
|---|---|
| Model Number | SW-SVI1G1WS |
| Current Rating | 10AX |
| Voltage | 250V AC, 50/60Hz |
| Configuration | 1 Gang 1 Way |
| Safety Standard | BS EN 60669-1 |
| Material | Polycarbonate (Flame Retardant) |
| Terminal Capacity | 3 x 1.5mm² / 2 x 2.5mm² |
| Fixing Centers | 60.3mm |
| Carton Quantity | 100 pcs |
What’s in the Box
-
1 x SVI 1 Gang 1 Way Switch Module
-
2 x M3.5 Mounting Screws
-
2 x Screw Cap Covers
Why Choose SVI 1 Gang Switch
-
Silver-nickel contact points ensure long-term electrical conductivity and reduced heat.
-
Captive terminal screws significantly accelerate large-scale installation workflows in commercial projects.
-
Compliance with BS EN 60669-1 ensures full regulatory approval for professional electrical installations.
