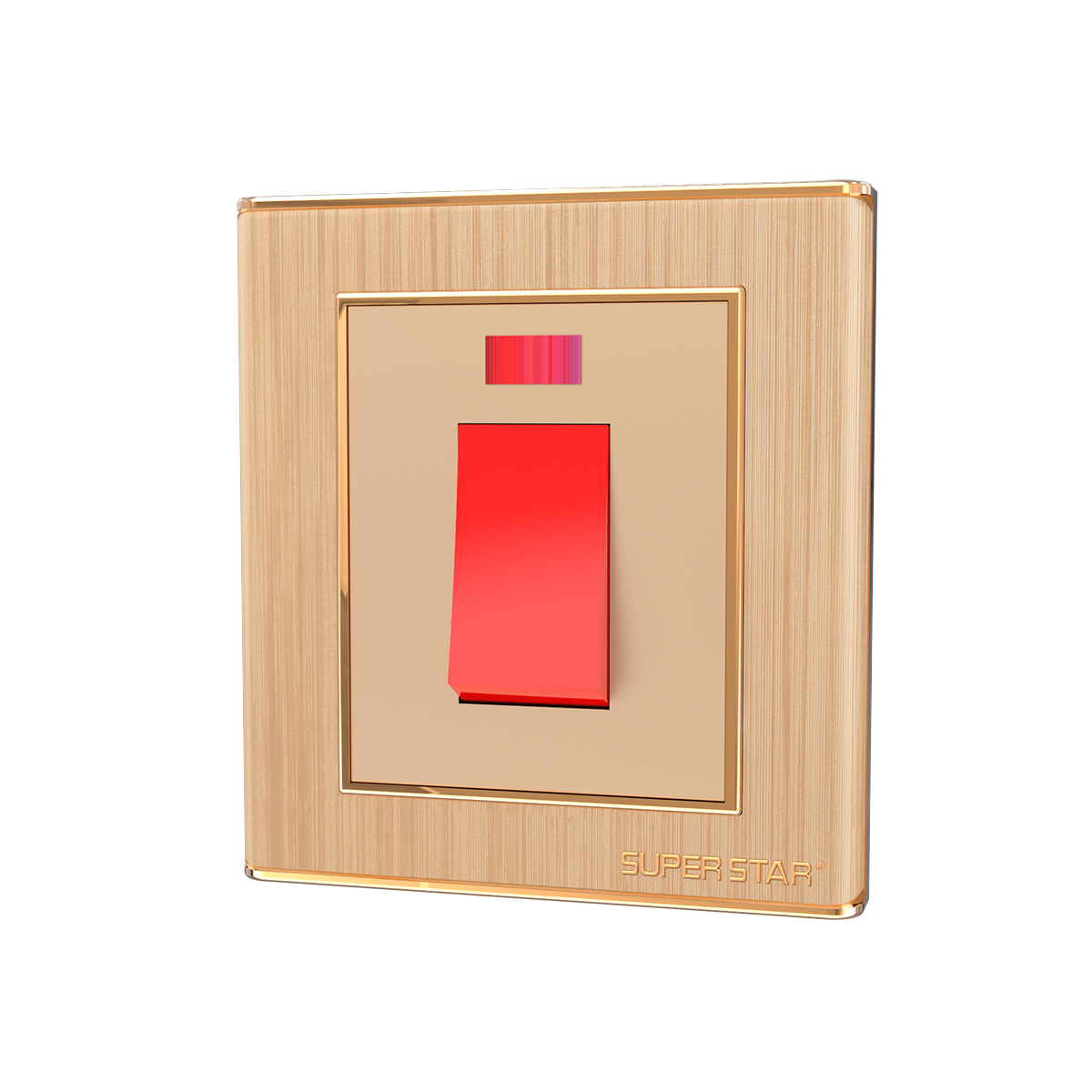

VIP Golden 45A Isolator
The VIP Golden 45A Switch provides a high-capacity power control solution for residential and commercial water heating systems. This heavy-duty double pole isolator manages resistive loads up to 11.25kW at 250V. The unit utilizes reinforced brass terminals to minimize contact resistance. It features a dedicated neon indicator for clear status monitoring. The design prioritizes thermal stability during continuous high-current operation. This hardware ensures safe electrical isolation for maintenance or emergency shutdown of high-power appliances.
Key Features
-
High Current Management
The internal mechanism supports a continuous 45-ampere flow without thermal degradation. -
Circuit Protection
- Double pole switching disconnects both live and neutral lines simultaneously.
- Silver-nickel alloy contacts prevent electrical arcing during actuation.
- Arc-extinguishing chambers dissipate energy quickly to protect internal components.
-
Material Integrity
The chassis consists of high-impact, flame-retardant polycarbonate that resists UV degradation. -
Installation Standards
- Large terminal apertures accommodate 6mm² and 10mm² conductors.
- Deep-cut terminal screws allow high-torque tightening for secure cable retention.
- Standard 60.3mm mounting centers ensure compatibility with global back box formats.
The device operates effectively within a temperature range of -5°C to +40°C. This environmental tolerance suits varied geographic installations. The golden finish provides a specific aesthetic finish while maintaining a high dielectric strength. Internal brass components contain high copper content to reduce voltage drop across the switch. This efficiency minimizes heat generation at the connection points. The unit complies with BS EN 60669-1 safety specifications for residential and industrial use. The mechanical life exceeds 15,000 cycles under full load conditions. The front plate includes concealed mounting screws to prevent unauthorized tampering. Each terminal block features clear L, N, and E markings for accurate wiring. The neon indicator draws minimal power while providing long-term reliability. This switch serves as a primary isolation point for water heaters and large kitchen appliances.
Specifications
| Feature | Specification |
|---|---|
| Current Rating | 45A |
| Voltage Rating | 220V – 250V AC |
| Frequency | 50/60Hz |
| Switch Type | Double Pole (DP) |
| Indicator Type | Neon Lamp |
| Material | Flame Retardant Polycarbonate |
| Terminal Capacity | Up to 10mm² |
| Standard Compliance | BS EN 60669-1 / IEC 60669-1 |
| Ingress Protection | IP20 |
What’s in the Box
-
1 x VIP Golden 45A Double Pole Switch
-
2 x Mounting Screws
-
1 x Installation Guide
Why Choose VIP 45A Isolators
-
Heavy-duty brass terminals ensure low-resistance connectivity for high-draw appliances.
-
The double pole mechanism provides complete electrical isolation during maintenance procedures.
-
High-impact polycarbonate housing maintains structural integrity under significant thermal stress.
-
Silver-nickel contacts extend the operational lifespan by reducing arcing and pitting.
Maina Kamau (verified owner) –
I bought this specifically for a 9.5kW instant shower heater in my master ensuite. Most of the standard white switches look a bit cheap, but this golden finish really stands out against the dark tiles. It’s heavy-duty and doesn’t heat up even when the shower is running for a long time. Definitely worth the extra coins for the build quality alone.
Fatuma Hassan (verified owner) –
Good quality switch for the kitchen. My fundi installed it for the new oven and it’s working perfectly. The neon light is quite clear so you can tell from a distance if the cooker is still on. Fast delivery to Mombasa too.
Brian Ochieng (verified owner) –
Very sturdy and the gold finish is quite elegant. Happy with the purchase.
Samuel Njenga (verified owner) –
As an electrician, I’ve seen many 45A switches that feel flimsy inside. This VIP Golden model has solid terminals that hold the 6mm cables securely. The double pole mechanism has a very positive click. Only gave 4 stars because the packaging was slightly dented, but the switch itself was 100% fine.
Mercy Wambui (verified owner) –
The switch looks very premium but I had a small issue during installation. The screws that came in the box were a bit short for my wall box which sits deep in the plaster. Had to look for longer ones at the local hardware. Otherwise, the switch works well and looks beautiful.
David Mutua (verified owner) –
Installed these for the AC units in our new office block in Upper Hill. They handle the load without any issues and the aesthetic matches our modern interior. Much better than the plain plastic ones you see everywhere.
